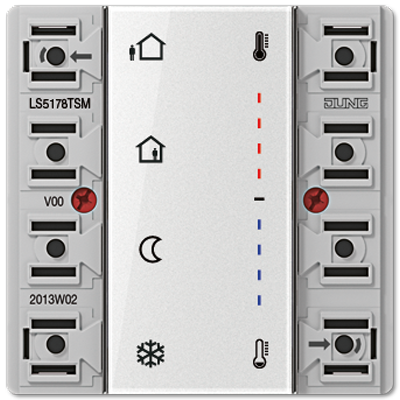

[LS]F50 Room Temperature Controller Module 2-Gang

Hover over image to zoom

  • Image 1
Jung
£245.96 (inc VAT) £204.97 (exc VAT)
SKU:
LS5178TSM
Weight:
0.11 KGS
Availability:
5 - 10 days lead time

 Product Description

including transparent cover and inlay with symbols
for cover kit 2-gang, ref.-no.: ..502 TSA .. in the LS range

Intended use

- Single-room temperature control in KNX installations
- Operation of loads, e.g. light on/off, dimming, blinds up/down, recalling and saving light scenes, etc.
- Installation in wall box according to DIN 49073

Characteristics

All buttons can be assigned with push-button sensor functions or functions for controller operation.

- Measurement of the room temperature
- Room temperature control with setpoint value specification
- Extension for room temperature controller
- Push-button functions switching, dimming, blind control, value transmitter, scene recall, etc.
- One or two functions per button
- Completion with cover kit 2-gang
- Illuminable inscription field
- Two red status LEDs per button – red, green or blue adjustable
- One operation LED as an orientation light and to indicate the programming status – red, green or blue adjustable
- Brightness of status LEDs, operation LED and labelling field adjustable; switchable while in operation, e.g. during the night
- Disabling function: Disable or function switch-over of all or of individual push-button functions
- Alarm function, optionally with confirmation by pressing any button
- Energy saving mode (for operation without controller function)
- Integrated bus coupling unit
- Connection for a push-button extension module, for extension with up to eight additional buttons

Spare part:
transparent cover ref.-no.: LS 50 NA
Accessories:
Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW, AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA D-L

Downloads

Operating Instruction
Manual
ETS File
