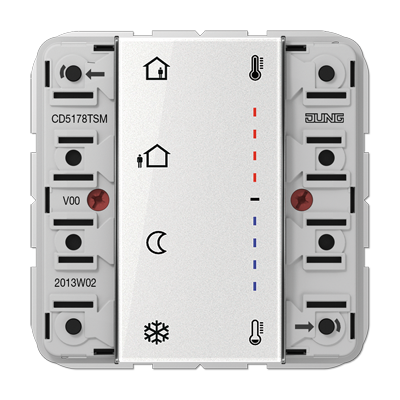

including transparent cover and inlay with symbols
for cover kit 2-gang, ref.-no.: CD 502 TSA ..

Intended use

- Single-room temperature control in KNX installations
- Operation of loads, e.g. light on/off, dimming, blinds up/down, recalling and saving light scenes, etc.
- Installation in flush box according to DIN 49073

Characteristics

- All buttons can be assigned with push-button sensor functions or functions for controller operation.
- Measurement of the room temperature - Room temperature control with setpoint value specification - Extension for room temperature controller - Push-button functions switching, dimming, blind control, value transmitter, scene recall, etc. - One or two functions per button - Completion with cover kit 2-gang - Illuminable inscription field - Two red status LEDs per button – red, green or blue adjustable - One operation LED as an orientation light and to indicate the programming status – red, green or blue adjustable - Brightness of status LEDs, operation LED and labelling field adjustable; switchable while in operation, e.g. during the night - Disabling function: Disable or function switch-over of all or of individual push-button functions - Alarm function, optionally with confirmation by pressing any button - Energy saving mode (for operation without controller function) - Integrated bus coupling unit - Connection for a push-button extension module, for extension with up to eight additional buttons

Spare part:
transparent cover ref.-no.: CD 50 NA

Accessories:
Neutral cover ref.-no.: CD 50 NA W, CD 50 NA WW, CD 50 NA GR, CD 50 NA LG, CD 50 NA SW
