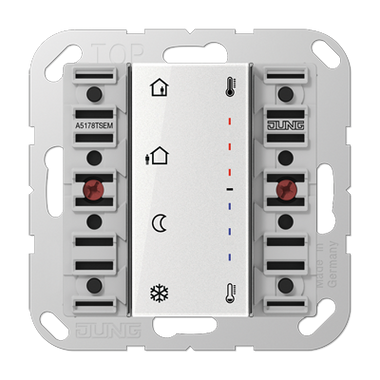

for cover kit 2-gang, ref.-no.: A 502 TSA ..
for the extension of a room controller module (ref.-no.: A 5192 KRM TS D, A 5194 KRM TS D) with a second room temperature control unit

Intended use

- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
- Measurement of room temperature
- Extension for room controller modules (.. 5192 KRM TS D, .. 5194 KRM TS D)
- Installation in flush box according to DIN 49073
- Cable length: max. 30 m, cable type: J-Y(St)Y 2 x 2 x 0.8 mm

Characteristics

All buttons can be assigned with push-button sensor functions or functions for controller operation.
- Measurement of the room temperature
- Room temperature control with setpoint value specification
- Extension for room temperature controller
- Push-button functions switching, dimming, blind control, value transmitter, scene recall, etc.
- One or two functions per button
- Completion with cover kit 2-gang
- Illuminable inscription field
- Two red status LEDs per button – red, green or blue adjustable
- One operation LED as an orientation light and to indicate the programming status – red, green or blue adjustable
- Brightness of status LEDs, operation LED and labelling field adjustable; switchable while in operation, e.g. during the night
- Disabling function: Disable or function switch-over of all or of individual push-button functions
- Alarm function, optionally with confirmation by pressing any button
- Energy saving mode (for operation without controller function)
- Integrated bus coupling unit
- Connection for a push-button extension module, for extension with up to eight additional buttons

Spare part:
Transparent cover ref.-no.: A 50 NA

Accessories:
Neutral cover ref.-no.: A 50 NA W, A 50 NA WW, A 50 NA SW, A 50 NA AL, A 50 NA CH, A 50 NA MO
