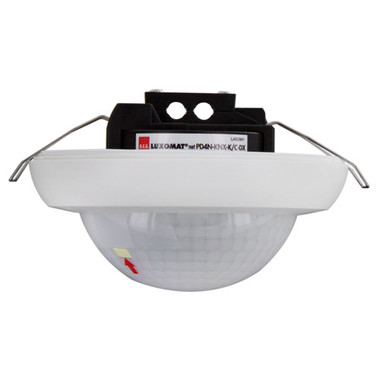

PD4N-KNX-C-DX

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
B.E.G.
RRP: £253.26
£191.52 (inc VAT) £211.05 £159.60 (exc VAT) (You save £61.74)
Weight:
3.00 KGS
Availability:
5 - 10 days lead time

 Product Description

- KNX occupancy detector designed for corridors, with integrated KNX bus connector
- Low installation depth
- 1x light output (for regulating or switching), 1x slave output, 3 x HVAC outputs (separately programmable)
- Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
- Two logic modules
- Individual adaption of detection sensitivity for each PIR sensor
- Direction of movement can be identified
- Mixed light measurement with internal and external light sensor
- Various locking functions
- Status LEDs can be activated / deactivated
- Programming button (phys. address) can be operated via remote control
- Regulation/switching of three light groups via offset (external influence possible)
- Short presence, self-adjusting follow-up time, corridor function
- Recall of light scenes
- ​​Temperature- and noise sensor
- HVAC mode (1=comfort, 2=stand-by, 3=economy, 4 = antifreeze/heat protection)
- 5 button remote control, programmable at choice (accessory)
- Occupancy simulation
- PIR sensors can be deactivated individually
- Detection area can be extended thanks to master-slave-mode
- Extensive optimization options for light measurement
- Measured light value is communicated to the bus
- IR remote control-capable via IR remote control (optionally)
- PIN code
- Manual influence via external KNX push buttons possible
- Function control (heartbeat, cyclical sending)
- Forced switch-off
- Intelligent central-off function
- Premonition of switch-off
- Behaviour upon bus voltage return definable at choice
- Variable safety pause after switching off the lights
- Settings ex ETS 4 for integration in KNX systems
- The product database for import into the ETS database can be downloaded from the B.E.G. homepage.
- Adaption of dimming curve
- Determination of the reflection factor, e.g. on a desk, with the optional BLE-IR-Adapter
- Burn-in function for fluorescent lamps selectable from 1h till 100h
- Soft-start
- There are markings for adjusting the detector
- Spring-clamps
- Blinds
- Typical application: monitoring of long corridors

Technical Details

Voltage: via KNX BUS
Dimensions: FC= Ø 106 x 68 mm
 FM= Ø 106 x 55 mm
typ. power input: 12 mA
Detection area: vertical 360°
Range: max. Ø 40 m across
 max. Ø 20 m towards
Monitored area (tangential movement): 250 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2.4 m / 2.6 m / 2.5 m
Degree / class of protection: FC= IP20 / Class III
 FM= IP20 / Class III
Temperature measurement range: -5 °C to +45 °C
Ambient temperature: -25 °C to +55 °C
Housing: Polycarbonate, UV-resistant
Number of light sensors: 2
Number of PIR sensors: 4
Orientation light: 5 - 100 % / OFF / 1 min - 255 min
Night light: 5 - 100 %
Brightness set value: 5 - 2000 Lux



Downloads

Instruction FC
Instruction FM
Brochure
Application Description
ETS File

Accessories

- BLE-IR-Adapter - black - 93067
- IR-Adapter for Smartphones - black - 92726
- IR-PD-KNX - 92123
- IR-PD-KNX-Mini - 93398
- Wire basket BSK (Ø 200 x 90 mm) - white - 92199
- SM socle mounting set IP54 - white - 93307
