RRP: $216.74
$163.79 (inc VAT) $180.62 $136.49 (exc VAT) (You save $52.95)
0.10 KGS
5 - 10 days lead time

 Product Description

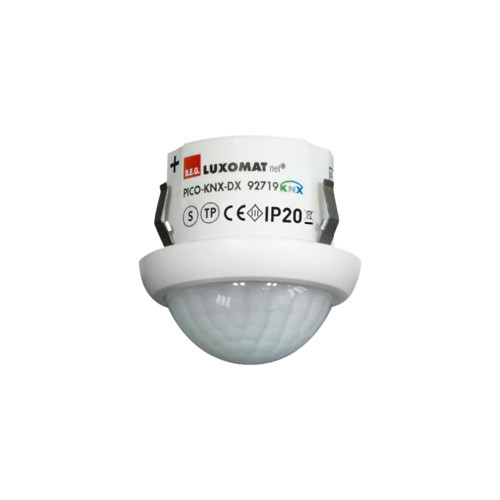

- KNX mini occupancy detector with integrated bus connector
- 1x light output (for regulating or switching), 1x slave output, 3 x HVAC outputs (separately programmable)
- Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
- Two logic modules
- Individual adaption of the PIR sensor sensitivity
- Measuring of mixed light thanks to internal light sensor
- Various locking functions
- Status LEDs can be activated / deactivated
- Programming button (phys. address) can be operated via remote control
- Regulation/switching of three light groups via offset (external influence possible)
- Short presence, self-adjusting follow-up time, corridor function
- Recall of light scenes
- Temperature sensor
- HVAC mode (1=comfort, 2=stand-by, 3=economy, 4 = antifreeze/heat protection)
- 5 button remote control, programmable at choice (accessory)
- Occupancy simulation
- Detection area can be extended thanks to master-slave-mode
- Extensive optimization options for light measurement
- Measured light value is communicated to the bus
- IR remote control-capable via IR remote control (optionally)
- PIN code
- Manual influence via external KNX push buttons possible
- Function control (heartbeat, cyclical sending)
- Forced switch-off
- Intelligent central-off function
- Premonition of switch-off
- Behaviour upon bus voltage return definable at choice
- Variable safety pause after switching off the lights
- Settings ex ETS 4 for integration in KNX systems
- Adaption of dimming curve
- Determination of the reflection factor, e.g. on a desk, with the optional BLE-IR-Adapter
- Burn-in function for fluorescent lamps selectable from 1h till 100h
- Soft-start
- Typical applications: Offices, conference rooms, schools, nursery schools, hospitals

Technical Details

Voltage: via KNX BUS
Dimensions: Ø 33 x 32 mm
Typ. power input: 12 mA
Detection area: vertical 360°

max. Ø 10 m across

max. Ø 6 m towards

max. Ø 4 m seated

Monitored area (tangential movement): 79 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 3 m / 2.5 m
Degree / class of protection: IP20 / Class III
Temperature measurement range: -5 °C to +45 °C
Ambient temperature: -25 °C to +55 °C
Housing: Polycarbonate, UV-resistant
Number of light sensors: 1
Number of PIR sensors: 1
Orientation light: 5 - 100 % / OFF / 1 min - 255 min
Night light: 5 - 100 %
Brightness set value: 5 - 2000 Lux



Application Description
ETS File


BLE-IR-Adapter - black - 93067
IR-Adapter for Smartphones - black - 92726
IR-PD-KNX - 92123
IR-PD-KNX-Mini - 93398
