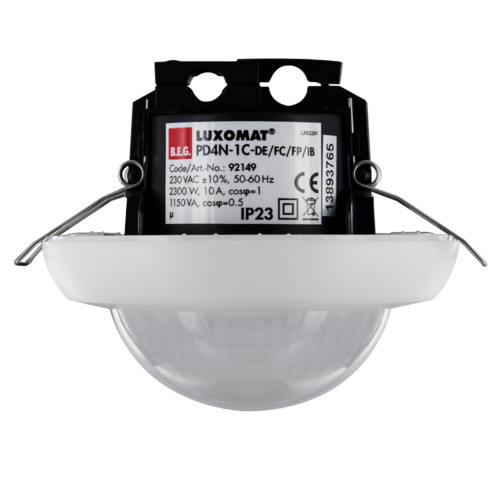

PD4N-1C - 1 channel

Hover over image to zoom

  • PD4N-1C-FC
  • PD4N-1C-SM
  • PD4N-1C-FM
  • PD4N-1C-FC
  • PD4N-1C-FM
  • PD4N-1C-SM
  • Image 7
  • Image 8
B.E.G.
RRP: £118.80
£112.27 (inc VAT) £99.00 £93.56 (exc VAT) (You save £6.53)
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

- Remote-control capable ceiling motion detector with large detection range
- One channel for light switching
- Special optical system for detection of even the smallest movements
- Uninterrupted parallel circuit detection of several detectors
- Manual switching via push-button possible
- Additional functions can be set up using the optional remote control.
- Factory settings 10 min and 500 lux

Application examples: monitoring of large areas, warehouses, loading ramps, underground car parks, gyms, halls.

Technical Details

Voltage: 110 - 240 V AC 50 / 60 Hz
Dimensions:

SM= Ø 109 x 65 mm

FC= Ø 106 x 90 mm

FM= Ø 106 x 76 mm

Power consumption: approx. 0.5 W
Detection area: vertical 360°
Range:

max. Ø 24 m across

max. Ø 8 m towards

max. Ø 6.4 m smaller movements

Monitored area (tangential movement): 450 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection:

SM= IP44 / Class II

FC= IP23 / Class II

FM= IP20 / Class II

Ambient temperature: -25 °C to +50 °C
Housing: Polycarbonate, UV-resistant
Channel 1 (lighting control)
Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact: 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec - 30 min, Pulse
Switch-on threshold: 10 - 2000 Lux



Downloads

Short Instruction (FC)
Short Instruction (SM)
Datasheet
Manual

Accessories

- IR-Adapter for Smartphones - black - 92726
- IR-PD3N - 92105
- IR-PD3/4N-1C-E - 93110
- IR-PD-Mini - 92159
- Wire basket BSK (Ø 200 x 90 mm) - white - 92199
- RC-Arc extinction kit - white - 10880
- Mini-RC-Arc extinction kit - black - 10882
