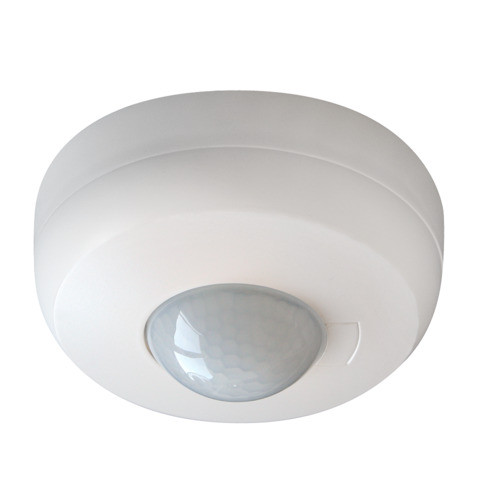

PD3N-1C - 1 Channel

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
B.E.G.
RRP: £68.40
£64.63 (inc VAT) £57.00 £53.86 (exc VAT) (You save £3.77)
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

- Remote control-capable ceiling motion detector
- One channel for light switching
- Special optical system for detection of even the smallest movements
- Uninterrupted parallel circuit detection of several detectors
- Manual switching via push-button possible
- Additional functions can be set up using the optional remote control.
- Factory settings 10 min and 500 lux

Typical applications: monitoring of smaller areas like stairwells, private garages, galleries, wash rooms

Technical Details

Voltage: 110 - 240 V AC 50 / 60 Hz
Dimensions:

SM= Ø 106 x 53 mm

FM= Ø 106 x 63 mm

FC= Ø 83 x 81 mm

Power consumption: approx. 0.5 W
Detection area: vertical 360°
Range:

max. Ø 10 m across

max. Ø 6 m towards

max. Ø 4 m smaller movements

Monitored area (tangential movement): 79 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection:

SM= IP44 / Class II

FM= IP20 / Class II

FC= IP23 / Class II

Ambient temperature: -25 °C to +50 °C
Housing: Polycarbonate, UV-resistant
Channel 1 (lighting control)
Switching power:
2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact: 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec - 30 min, Pulse
Switch-on threshold: 10 - 2000 Lux



Downloads

Datasheet
Manual
Flyer
Short Instruction (FM)
Short Instruction (FC)
Short Instruction (SM)

Accessories

- IR-Adapter for Smartphones - black - 92726
- IR-PD3/4N-1C-E - 93110
- IR-PD3N - 92105
- IR-PD-Mini - 92159
- Wire basket BSK (Ø 200 x 90 mm) - white - 92199
- RC-Arc extinction kit - white - 10880
- Mini-RC-Arc extinction kit - black - 10882
- Square design frame PD3N FC - white matt, similar to RAL 9010 - 92991
