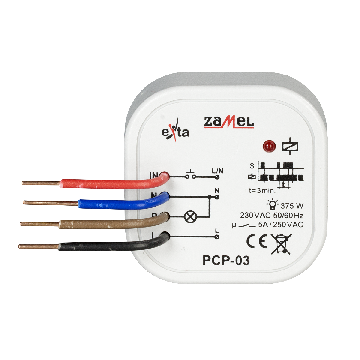

PCP-03 - Time Relay 230V AC

Hover over image to zoom

  • Image 1
  • Image 2
ZaMeL
£17.40 (inc VAT) £14.50 (exc VAT)
SKU:
PCP-03
Weight:
0.10 KGS
Availability:
Next Day Delivery
Current Stock:
1

 Product Description

PCP-03 - Time Relay 230V AC

The PCP-03 function relay is designed for timing function implementation in automatics and control systems. Both power supply voltage and control input trigger the relay.

The PCP-03 relay is time impulse triggered with rising edge with delayed switch off (from either L or N wires). It is possible to adjust time within very wide range. The device is fitted with the relay state indicator – the LED. It is possible to mount the device in the 60 mm junction box.

Features

- 10 operating modes (external release or from power supply voltage)
- Wide time adjustment range
- Power/relay supply indicator and time measure - LED red
- Supply voltage control signal - LED green
- Two time ranges adjustment

Technical details

Mounting method Flush Mounted
Power supply terminals L (black), N (blue)
Rated supply voltage 230 V
Rated temperature - 20/60 °C
Rated frequency 50/60 Hz
Parameters of relay contacts Voltage contact - 5 A / 250 V AC1 1250 VA
Time range 3 min. - set pernament
Protection degree IP20
Dimensions 50 x 50 x 18 mm
