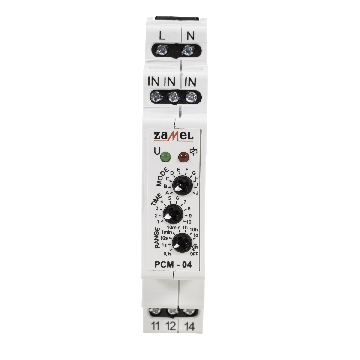

PCM-04 - Time Relay Multifunctional 230V AC
Hover over image to zoom
ZaMeL
Product Description
The multifunctional time relay PCM-04 has a time function in automation and control systems. It is equipped with 10 independent operating modes released by power supply voltage or external impulse command (coming from L or N line). It has a wide time adjustment range and constant switch on/off function. The mode change is possible without waiting for the current cycle to be finished.
Features
- Monomodular casing
- Voltage relay output - 1 change over contact (NO/NC) contact max 16 A capacity
- Time measure accuracy
- TH 35 DIN rail installation
- Constant switch on, switch off function
- Power/relay supply indicator and time measure - LED red
- Wide time adjustment range
- 10 operating modes (external release or from power supply voltage)
- Supply voltage control signal - LED green
Technical details
| Mounting method | DIN Rail Mounted |
| Power supply terminals | L, N |
| Rated supply voltage | 230 V |
| Time setting range t | 0,1 s ÷ 10 days (step + float) |
| Rated temperature | - 20/45 °C |
| Rated frequency | 50/60 Hz |
| Parameters of relay contacts | 1NO/NC -16 A / 250V AC1 4000VA |
| Protection degree | IP20 |
| Dimensions | 90 x 17.5 x 66 mm |
