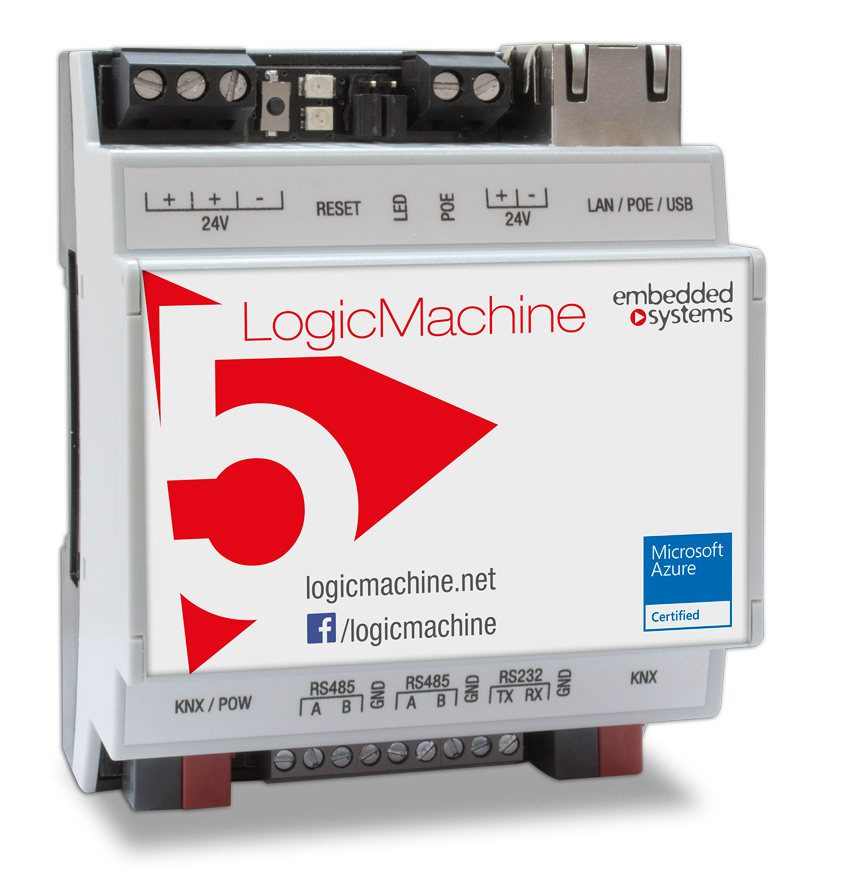

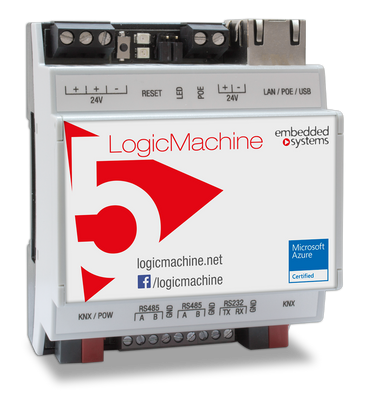

LM5p2-PMC - LogicMachine5 Power Choke with KNX TP1

Hover over image to zoom

  • Image 1
  • Image 2
Embedded Systems
On Request
SKU:
LM5p2-PMC
Weight:
0.30 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

LogicMachine5 Power brings redundancy and maintenance possibilities of your installation to another level.

LM5 Power is an embedded platform with integrated Ethernet, USB, KNX/EIB, Serial interfaces. LM allows to use it as cross-standard gateway, logic engine, visualization platform, IP Router. Scripting templates provides user-friendly, flexible configuration interface and integration with cloud/web services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat, security panel, lighting controller, etc. LogicMachine application store and external app development possibility allows to extend device functionality and adjust to a specific market segment.

Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play.

I/O specification:

- 1 x RS485
- 1 x RS485/RS-232 (switchable in software)
- 1 x USB2.0
- 1 x 10/100 Ethernet with passive PoE support
- 1 x KNX TP1 (TP-UART2 physical layer IC)
- KNX Choke output to power KNX fieldbus devices

Hightlights

- Built in KNX Choke for powering up to 32 KNX devices (320 mA)
- Power-over-Ethernet powering
- Automatic Ethernet connection checking and informing in case of troubles
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of KNX, ModBus RTU/TCP, BACnet IP, DMX, M-Bus, GSM and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 4 DIN units
- Remote KNX bus control and KNX device reprogramming
- Object logging with trends support and data exporting to external servers
- iOS Siri and Google Voice control supported via native apps
- 3x more powerful CPU than all previous LogicMachine versions.

LogicMachine5 Comparison Table (PDF)

Online Presentation of Core Functionality (Link)

Technical Details

Power supply:


1 x 12V-30V DC on terminal connectors or 12V-30V DC Passive Power-over-Ethernet
2 x 24-30V DC on terminal connectors for KNX bus powering (automatically swaps when one of inputs fails)

Power consummation: 1.3W
Interface:


- 1 x KNX/EIB TP1
- 1 x 10BaseT/100BaseTX
- 1 x RS-485
- 1 x RS-485/RS-232 (switchable in software – full-duplex=RS232, half-duplex=RS485)
- 1 x USB2.0
- Choke for up to 16 KNX device powering and with voltage/current monitoring max 320mA current

Connections:


KNX bus: Bus Connection Terminal /0.8 mm2
Power supply: Screw, 1.5 mm2
Serial: Screw, 1 mm2

Operating elements: CPU Load LED, Activity LED
Enclosure: Polyamide
Color: Gray
Dimensions: 71(W)x90(H)x61(L) mm
Usage temperature: 0C ... +45C
Storage temperature: -15C ... +55C
Weight: 119g
Warranty: 2 years
Relative Humidity: 10...95 % without condensation



Downloads

Datasheet
Manual

Visualization Examples

ONLINE DEMO LOGICMACHINE:

LogicMachine DEMO

Login: admin

Password: admin

ONLINE DEMO VISUALIZATION:

Visualization DEMO


Visualization Examples


 lm-visu1-290x217.jpg  lm-visu2-290x217.jpg  lm-visu3-290x217.jpg
