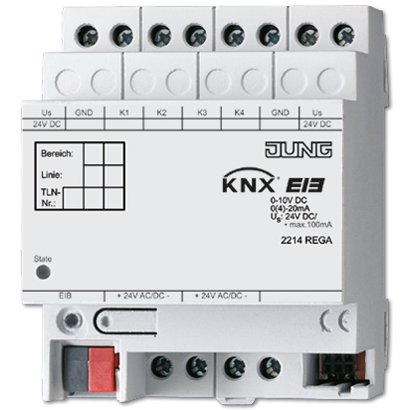

KNX Analogue Input 4-G - 2214 REG A
Hover over image to zoom
Jung
£215.95 (inc VAT) £179.96 (exc VAT)
SKU:
2214REGA
Weight:
0.20 KGS
Availability:
5 - 10 days lead time
Product Description
Rail mounting device, 4 rail units
ETS product family: Input
Product type: Analogue input 4-gang
The analogue input processes measured-value data supplied by analogue sensors. Four analogue transducers in any combination can be connected to the input. The analogue input evaluates voltage and current signals.
Voltage signals: 0 ... 1 V DC 0 ... 10 V DC
Current signals: 0 ... 20 mA DC 4 ... 20 mA DC
The 4 ... 20 mA current inputs can be monitored for open-circuit conditions.
The analogue input needs a separate power supply, for example the power supply module ref.-no. WSSV 10.
Technical Details
| Supply voltage: | AC 24 V ~ ± 10 % |
| Analogue inputs: | 4 |
| Format: | EIS 5 (2 Byte) or EIS 6 (1 Byte) |
| Ranges: | voltage 0 ... 1 V, 0 ... 10 V; current 0 ... 20 mA, 4 ... 20 mA; (depending on parameterisation) |
| Limit values: | 2 per channel |
| Supply output for sensor: | 2 terminal pairs |
| Voltage: | DC 24 V ± 25 % |
| Total current: | max. 100 mA |
