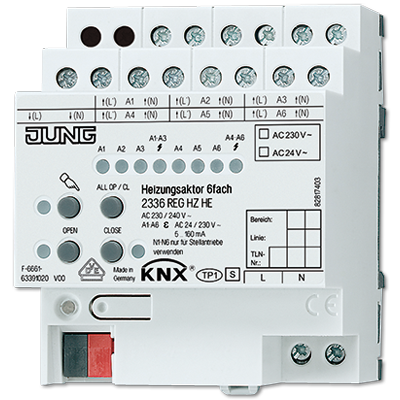

KNX Heating Actuator 6-G - 2336 REG HZ HE

Hover over image to zoom

  • Image 1
Jung
£172.84 (inc VAT) £144.03 (exc VAT)
SKU:
2336REGHZHE
Weight:
0.29 KGS
Availability:
5 - 10 days lead time

 Product Description

Rail mounting device, 4 rail units
6 outputs "TRIAC"
with manual electronic operation and LED status indication
ETS product family: Heating, A/C, Ventilation
Product type: Valve

Intended Use

- Switching of electrothermal actuators for heaters or cooling ceilings
- Installation in distribution boxes on DIN rail according to EN 60715

Characteristics

- Switching operation or PWM operation
- Actuators with characteristics opened or closed without power controllable
- Valve drives for 230 V or 24 V controllable
- Outputs can be operated manually, construction site mode
- Feedback in manual mode and in bus mode
- Disabling of individual outputs manually or by bus
- Overload-protected, short circuit-protected; error indication with LED
- Protection against jamming valves
- Forced position
- Various setpoints for forced position or emergency operation in case of bus failure for summer or winter
- Cyclical monitoring of the input signals can be parameterised
- Feedback via bus, e.g. in case of mains failure, overload or sensor failure

Technical Details

Rated voltage: AC 110 ... 230 V ~, 50/60 Hz
Stand-by power: max. 0.4 W
Power loss: max. 1 W
Rated voltage KNX: DC 21 ... 32 V SELV
Power consumption KNX: max. 250 mW
Ambient temperature: -5 ... +45 °C
Storage/transport temperature: -25 ... +70 °C
Heating outputs
Contact type: semiconductor (triac), ε
Switching voltage: AC 24 / 230 V ~
Mains frequency: 50/60 Hz
Switching current: 5 ... 160 mA
Switch-on current: max. 1.5 A (2 s)
Switch-on current: max. 0.3 A (2 min)
Number of drives per output
230 V drives: max. 4
24 V drives: max. 2
Mounting width: 72 mm (4 rail units)
Connection, outputs
Connection mode: screw terminals
single wire: 0.5 ... 4 mm²
stranded without ferrule: 0.5 ... 4 mm²
stranded with ferrule: 0.5 ... 2.5 mm²
