KNX Analogue Actuator 4-G - 2204.01 REGA

Hover over image to zoom

  • Image 1
Jung
£313.54 (inc VAT) £261.28 (exc VAT)
SKU:
2204.01REGA
Weight:
0.23 KGS
Availability:
5 - 10 days lead time

 Product Description

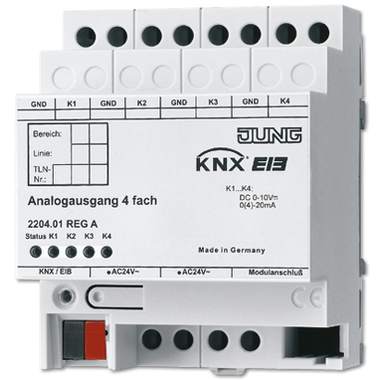

Rail mounting device, 4 rail units
ETS product family: Output
Product type: Analogue output 4-gang

The analogue output needs 24 V AC for operation. The necessary power can be supplied by the power supply unit ref.-no.: WSSV 10.

- The analogue output converts measuring data received via KNX telegrams (DPT-ID 9.0xx and 5.010) into analogue output signals.
- The analogue output signals enable heating, ventilation and air conditioning units to adapt their output values to information received from the bus and thus to take part in control processes.
Voltage signals: 0 ... 1 V DC 0 ... 10 V DC
Current signals: 0 ... 20 mA DC 4 ... 20 mA DC
- The analogue output offers four analog outputs which can be software-parameterised for one of the ranges mentioned above. Outputs not used can be deactivated.
- The output variables can be force-controlled from a coordinating control system.
- With an analogue output extension module, the number of analog outputs can be increased from 4 to 8.
- In conjunction with the “dimming” function of a sensor, both, the analogue output and also the analogue output extension module can be used as an active control unit for dimming applications.
Remarks on the hardware:
- The GND terminals must not be connected to the corresponding terminals of another device.
- The outputs of the analogue output and of the analogue output extension module must not be connected to the 1 ... 10 V interface of electronic ballasts or electronic transformers.
- All connected components must ensure safe separation from other voltages

Technical Details

Power supply
Supply voltage: AC 24 V ~ ± 10 %
Current consumption: max. 308 mA
Rated voltage KNX: DC 21 ... 32 V SELV
Power consumption KNX: typical 150 mW
Ambient temperature: -5 ... +45 °C
Storage/transport temperature: -25 ... +70 °C
Humidity
Ambient/storage/transport: max. 93 % r. h., no condensation
Mounting width: 72 mm (4 rail units)
Weight: approx. 180 g
Terminals
Outputs, power supply: screw terminals
single wire: 0.5 ... 4 mm²
stranded without ferrule: 0.5 ... 4 mm²
stranded with ferrule: 0.5 ... 2.5 mm²
KNX: bus connection block
Analogue outputs
Number: 4
Ranges: 0 ... 1 V, 0 ... 10 V, DC
  0 ... 20 mA, 4 ... 20 mA, DC
Voltage signal load: ≥ 1 kW
Current signal load: ≤ 500 W
Power supply
Analogue actuator module: DC 24 V via system bus @ max. 80 mA
