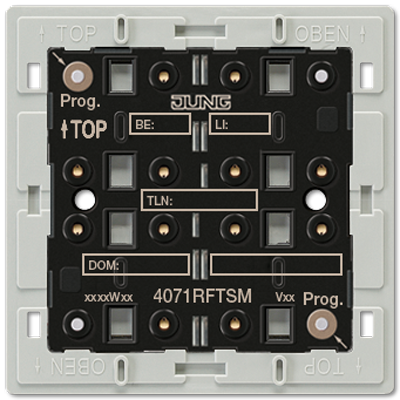

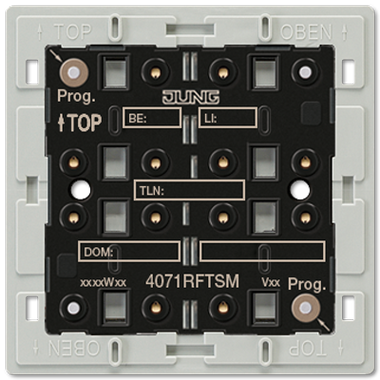

F40 KNX RF Radio Transmitter Module 1-Gang

Hover over image to zoom

  • Image 1
Jung
£109.61 (inc VAT) £91.34 (exc VAT)
SKU:
4071RFTSM
Weight:
0.08 KGS
Availability:
5 - 10 days lead time

 Product Description

for cover kit 1-gang, ref.-no.: .. 401 TSA ..
for cover 1-gang with symbols, ref.-no.: .. 401 TSAP ..
Adapter frames are included in delivery: ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range. AS / A ranges without adapter frame.
Can not be combined with frames in Flat Design.
Project design and commissioning with ETS5 or a more recent version.
ETS product family: Push-button
Product type: 1-gang push-button
1 red LED: actuator status
1 blue LED: transmission status

Intended Use

- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
- Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
- Mounting on appliance box according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass). Adhesive pad included.

Characteristics

- Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc.
- Button pairs for push-button function or rocker function
- Status indication with LED
- Battery-powered device

Technical Details

Rated voltage: DC 3 V
Battery type: 1 x lithium CR 2450N (included)
Ambient temperature: -5 ... +45 °C
Relative humidity: max. 80 % (no condensation)
Radio frequency: 868.0 ... 868.6 MHz
Transmitting power: max. 20 mW
Transmission range in free field: typical 100 m



Downloads

Operating Instruction
Manual
ETS File
