Door/Window Surface-Mounted Contact - Large

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
Zennio
£3.42 (inc VAT) £2.85 (exc VAT)
SKU:
990000307
Weight:
0.05 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

Zennio magnetic contact for surface mounting in door or window. Large.
Available in 3 colours:

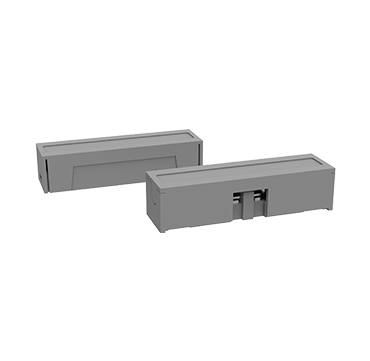

- Silver (Ref. 990000306)

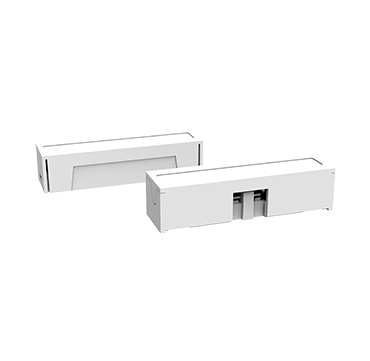

- White (Ref. 990000307)
- Brown (Ref. 990000312)

* This accessory may be connected to any Zennio device with binary or analog-digital inputs.

FEATURES

- Surface-mounted in doors and windows.
- Available colours:
White (ref. 990000307)
Brown (ref. 990000312)
Silver (ref. 990000306)
- Dimensions Magnet: 50x14x12 mm / Contact: 50x14x12 mm
- Normally-open contact (when the magnet is not present).
- Conformity with the CE directives (CE-mark on packaging).

Technical Details

GENERAL SPECIFICATIONS

CONCEPT DESCRIPTION
Type of device Electric operation control device
Operation temperature 0ºC to +55ºC
Storage temperature -20ºC to +55ºC
Operation humidity 5 to 95% RH (no condensation)
Storage humidity 5 to 95% RH (no condensation)
Complementary characteristics Class B
Protection class II
Operation type Continuous operation
Device action type Type 1
Electrical stress period Long
Degree of protection IP20, clean environment
Installation Surface-mounted in doors and windows.
Weight 21g
Housing material ABS

CONTACT SPECIFICATIONS AND CONNECTIONS

CONCEPT DESCRIPTION
Contact options Normally Open (when the magnet is not present)
Maximum voltage 100V
Maximum current 0.5A
Maximum power 10W
Maximum gap between magnet and contact 15mm
Output type Potential-free contact
Connection method Screw terminal block
Cable cross-section 0.5mm² to 1mm² (26-16 AWG)



Downloads

Datasheet
