SK10-TC-OFTF Contact / Surface Sensor

Hover over image to zoom

  • Image 1
Arcus
£170.09 (inc VAT) £141.74 (exc VAT)
SKU:
30511001
Weight:
0.25 KGS
Availability:
Usually ships in 5 - 10 working days

 Product Description

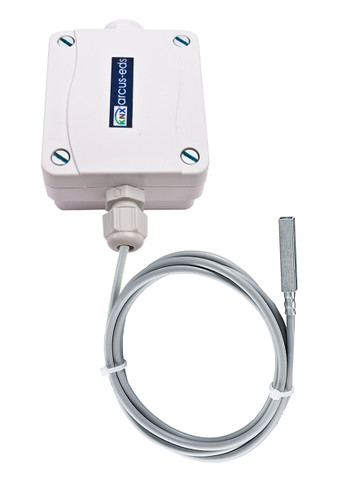

The KNX-Sensor SK10-TC-OFTF is used for measuring and controlling air temperature in indoor / outdoor and damp locations (IP54/65) with contact / surface probe, rectangular for straight surfaces. The temperature sensor (PT1000) in an aluminum casing 8x8x40 mm is attached with an appropriate adhesive to the surface to be measured.

The housing is suitable for wall mounting and is mounted with 2 screws.

Features

- Air temperature ( contact / surface sensor ) also weighted with external temperature
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature
- Fan control by external inputs
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller

Four logic blocks for the logical link between internal and external signals

- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events

Technical Details

Measurement: Temperature
Control: Integrated
Temperature Range: -30 .. +105°C
Resolution: ± 0,01°C
Accuracy: ± 0,3°C + accuracy of the sensor
Operating Voltage: KNX Bus Voltage 21 .. 32VDC
Power Consumption: approx. 240mW ( at 24VDC )
Environment Temperature KNX-Module:

Storage: -25 .. +85°C

Operating: -25 .. +80°C

Environment Humidity KNX-Module: 0 .. 95% r.H Non Condensing
Bus Coupler: Integrated
Auxiliary Supply: Not Required
Startup with the ETS Version 4 or higher: HLK305
Curcuit Points: KNX 2-Pole Clamps ( red / black )
Protection Class: IP54/65
Housing KNX-Module: Plastic
Dimensions Housing KNX-Module: ( 72 x 64 x 40 ) mm
Article Number: 30511001
