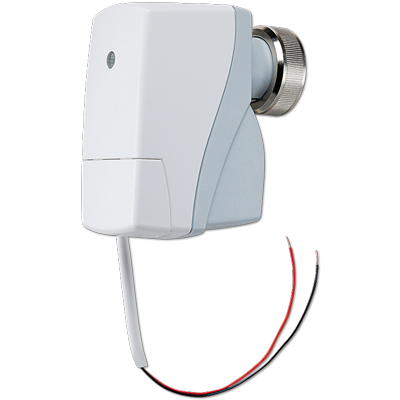

Valve Drive (Motor-Operated)
Hover over image to zoom
Jung
£217.66 (inc VAT) £181.38 (exc VAT)
SKU:
2177SVR
Weight:
0.30 KGS
Availability:
5 - 10 days lead time
Product Description
- with controller
- electromechanical servo drive
- ETS product family: Heating, A/C, Ventilation
- Product type: Valve
Intended Use
- Motor-operated valve drive for heating or cooling valves
- To be screwed on valve head
Characteristics
- Integrated temperature sensor
- Room temperature control
- Mechanical indication of valve lift
- Automatic detection of valve lift
- One input, can be used as binary input or for an external temperature sensor (ref.-no.: FF 7.8)
- Use in heating circles possible
- Integrated bus coupling unit
- Valve protection function
Accessories:
external sensor ref.-no.: FF 7.8
Technical Details
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Current consumption KNX: | max. 20 mA |
| Protection class: | III |
| Valve connection: | M 30 x 1.5 |
| Valve lift: | 1.0 ... 4.2 mm |
| Actuating power: | 80 ... 120 N |
| Dimensions (L x W x H): | 76 x 47 x 85 mm |
| Connection cable | |
| Cable type: | J-YY 1 × 2 × 0.6 mm |
| Cable length: | 1 m |
| Total length per line: | max. 30 m |
| Number of drives per line: | max. 30 |
| Connection cable, binary input/external sensor | |
| Voltage satellite inputs: | approx. 3.3 V |
| Cable length: | max. 10 m |
| single wire: | 0.08 ... 1.5 mm² |
| stranded without ferrule: | 0.08 ... 1 mm² |
| stranded with ferrule: | 0.14 ... 0.5 mm² |
| Protection level: | IP 40 |
| Ambient temperature: | 0 ... +50 °C |
| Storage/transport temperature: | -20 ... +70 °C |
| Relative humidity: | 5 ... 95 % (no condensation) |
