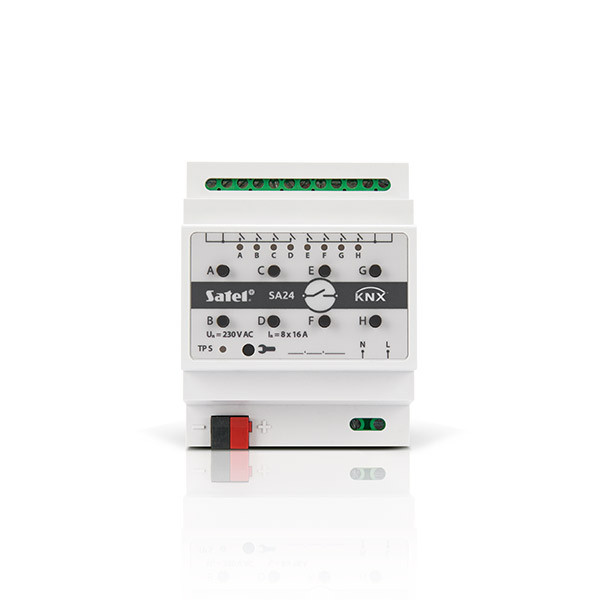

Universal 8-Out Switch Actuator KNX-SA24
Hover over image to zoom
Satel
Product Description
KNX-SA24 module is an universal switch actuator, which makes it possible to control electrical devices (lighting, ventilation). The telegrams received from various KNX devices (e.g. sensors) are converted, via the module, into concrete actions, such as switching on/off light or fan.
The KNX SA24 module has 8 relay outputs. Each of them corresponds to one logical channel.
Features
- communication with KNX bus via integrated bus connector
- feedback on the state of module and individual channels
- reaction of each channel can be defined in case of KNX bus voltage loss and recovery
- reaction of each channel can be defined in case of mains voltage recovery
- time functions (flashing, on/off delay, staircase light function with advance warning option and operating time change)
- logic functions (AND, NAND, OR, NOR, XOR, XNOR)
- threshold value function
- safety functions
- state forcing functions
- scenes for each of the channels can be called up by using 1- and 8-bit commands
- manual control of each channel state by using buttons situated on enclosure
- status LEDs for each channel
- capability of switching between resistive, inductive and capacitive loads
- module configuration using ETS software
- suitable for mounting on DIN rail (35 mm)
Technical Details
| KNX bus voltage | 20…30 V DC |
| Current draw from KNX bus | < 10mA |
| Supply voltage | 230V |
| Number of relay outputs | 8 |
| Contact rating | 16 A |
| Capacitive load | 16 A, max. 200 µF |
| Electrical endurance (number of switching cycles), AC1 (600 cycles/h) | > 10⁵ 16 A / 250 V AC |
| Electrical endurance (number of switching cycles), DC1 (600 cycles/h) | > 10⁵ 16 A / 24 V AC |
| Electrical endurance (number of switching cycles), AC3 (I = 3,5 A) | > 2,5 x 10⁵ |
| Electrical endurance (number of switching cycles), AC1 (when loaded with 1000 W incandescent lamps) | > 0,9 x 10⁵ |
| Fluorescent lamps (without compensation) | 3680 W |
| Fluorescent lamps (parallel compensation) | 2500 W, 200 µF |
| Fluorescent lamps (series compensation) | 3680 W, 200 µF |
| Compact fluorescent lamps (without compensation) | 3680 W |
| Compact fluorescent lamps (parallel compensation) | 2500 W, 200 µF |
| HV 230V halogen lamps | 3680 W |
| LV halogen lamps (electronic transformer) | 2500 W |
| LV halogen lamps (conventional transformer) | 2000 VA |
| High-pressure mercury lamps (without compensation) | 3680 W |
| High-pressure mercury lamps (parallel compensation) | 3680 W, 200 µF |
| Incandescent lamps | 4 |
| Maximum switching frequency at no load | 3 600 cycles/h |
| Maximum switching frequency at rated load, AC1 | 600 cycles/h |
| Maximum number of group addresses | 256 |
| Maximum number of communication objects | 133 |
| Maximum switching power, AC1 | 4 000 VA |
| Maximum time of response to telegram | < 20 ms |
| Weight | 240 g |
| IP code | IP20 |
| Enclosure dimensions | 70 x 92 x 60 mm |
| Operating temperature range | 0°C...+45°C |
| Temperature range for storage / transport | -25°C...+70°C |
