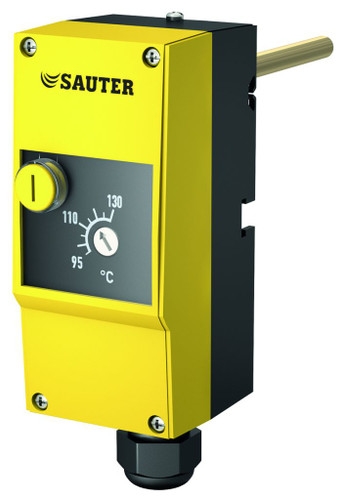

TUC Universal Thermostat

Hover over image to zoom

  • Image 1
SAUTER
£119.81 (inc VAT) £99.84 (exc VAT)
Weight:
0.30 KGS
Availability:
5 days lead time

 Product Description

Control, monitoring and limiting according to needs and with no auxiliary energy.

Features

- Regulates and monitors the temperature of liquids in baths, containers, pipes and ducts
- Variants as temperature monitors (TW), safety temperature monitors (STW), temperature limiters (TB) or safety temperature limiters (STB)
- Thermostat with remote sensor
- Clamp-on thermostat
- Capillary tube thermostat with or without thermowell
- Double thermostat, e.g. as TW and STB
- Certified as per EN 14597 (TUC207F003 and TUC407F001, TUC407F002)
- As per PED 2014/68/EU classified as cat. IV (TUC207F003, TUC407F001 and TUC407F002)
- The shift in the change-over point is minimised due to the temperature compensation.
- Thermowell 100 mm supplied (max. 12 bar)

Technical Details

Power Supply
Terminal 1-2 Max. load 230 V~, 10 (2.5) A (on the normally closed contact)
Terminal 1-4 Max. load 230 V~, 2 (0.4) A
Terminals 1-2/1-4 Min. load 24V =/~, 100 mA
Parameters
Adjustment point For ta 22 °C
Effect of temperature at instrument head Approx. –0.1...–0.2 K/K
Time constant with thermowell (LW 7) < 45 s (water)
 < 60 s (oil)
Time constant without thermowell < 120 s (air)



Overview

Type Setting Range Type Switching Difference Capillary Tube Length Sensor Cartridge Length (± 12 mm) Thermowell Max. sensor temp.
TUC101F003 -10...50 °C TW Approx. 4.2 K 1.6 m 80 mm 100 mm, brass 140 °C
TUC102F001 5...30 °C TW Approx. 5.6 K 0.7 m 65 mm 100 mm, brass 200 °C
TUC105F001 15...95 °C TW Approx. 5.6 K 0.7 m 65 mm 100 mm, brass 200 °C
TUC106F001 40...120 °C TW Approx. 5.6 K 0.7 m 65 mm 100 mm, brass 200 °C
TUC107F001 50...130 °C TW Approx. 5.6 K 0.7 m 65 mm 100 mm, brass 200 °C
TUC108F001 80...160 °C TW Approx. 5.6 K 0.7 m 65 mm 100 mm, stainless steel 200 °C
TUC207F003 70...130 °C STW Approx. 10 K 1.6 m 60 mm 100 mm, brass 160 °C
TUC303F001 15...60 °C TB ≤ 20 K 0.7 m 70 mm 100 mm, brass 200 °C
TUC307F001 50...130 °C TB ≤ 20 K 0.7 m 65 mm 100 mm, brass 200 °C
TUC407F001 95...130 °C STB ≤ 20 K 0.7 m 76 mm 100 mm, brass 160 °C
TUC407F002 95...130 °C STB ≤ 20 K 0.7 m 76 mm 150 mm, brass 160 °C
