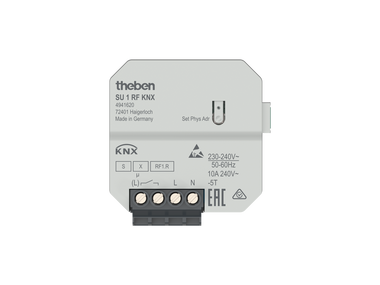

SU 1 RF KNX
Hover over image to zoom
Theben
£85.25 (inc VAT) £71.04 (exc VAT)
SKU:
4941620
Weight:
0.20 KGS
Availability:
5 - 10 days lead time
Product Description
Function description:
- 1-way wireless flush-mounted switch actuator KNX
- Secure communication via KNX-RF with support of "KNX Data Secure"
- Adjustable features: NC/NO contact, switching, delayed switching, pulse function
- 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
- The binary inputs are assigned to the switch output as standard (function test before programming)
- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Technical Details
| Operating voltage | 230 - 240 V AC 50 - 60 Hz |
| Installation type | Flush-mounted |
| Type of connection | Screw terminals |
| Number of channels | 1 |
| Type of contact | 10 A |
| Incandescent/halogen lamp load | 1800 W |
| Halogen lamp load | 1800 W |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Inrush current | max. 740 A / 200 µs |
| Type | Base module |
| Ambient temperature | -5°C ... 45°C |
Downloads
Operating Instructions
Datasheet
Manual
ETS File
Accessories
External Temperature Sensor 1 - 9070191
Temperature Sensor - 9070321
Temperature Sensor RAMSES IP 65 - 9070459
