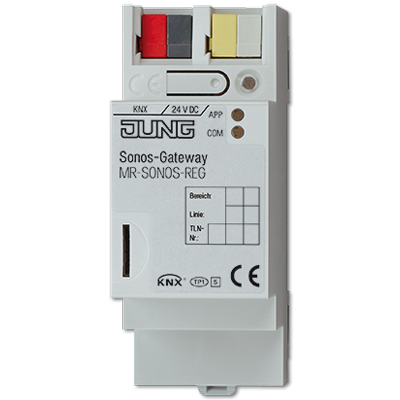

Sonos Gateway - MR-SONOS-REG
Hover over image to zoom
Jung
Product Description
Rail mounting device, 2 rail units
ETS product family: Multimedia
Product type: Multiroom
Intended Use
- Controlling of Sonos audio devices via KNX
- Mounting on DIN rail according to EN 60715 in distribution boxes
Characteristics
- Control of up to 30 Sonos devices via KNX devices, independent of the Sonos App
- Dynamic group creation of up to 10 zones with one master and five slave devices each via KNX objects
- Party mode: same music for all rooms
- Volume control for master, slaves and the whole group
- Control of play lists
- Playing music from microSD card (not included) in the Sonos gateway
- Title, artist and album on KNX text objects
- Integrated data network switch with two RJ45 terminals
- Requires ETS version 4.2 or 5.0.2 or higher
Technical Details
| External supply | |
| Rated voltage: | DC 24 ... 30 V ± 10 % |
| Connection: | connecting terminal yellow/white |
| Power consumption: | typical 2 W (at DC 24 V, two Ethernet cables connected) |
| IP communication: | Ethernet 10/100 BaseT (10/100 Mbit/s) |
| IP connection: | 2 x RJ45 |
| Protocols: | ARP, ICMP, IGMP, UDP/IP, DHCP, AutoIP, KNXnet/IP (Core, Device Management) |
| Memory card: | max. 32 GB microSDHC |
| Ambient temperature: | 0 ... +45 °C |
| Storage/transport temperature: | -25 ... +70 °C |
| Mounting width: | 36 mm (2 rail units) |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Connection, KNX: | terminal |
