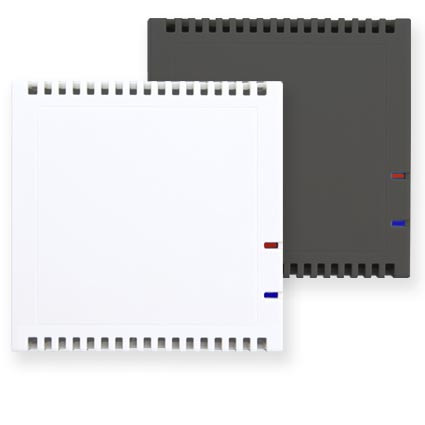

The KNX-Sensor SK30-TTHC-VOC is used for measuring and controlling indoor air parameters.

External Sensor not included!
(the compatible sensors are listed in accessories tab below).

Features

- Air temperature ( sensor in the housing ) also weighted with external temperature
- Humidity ( sensor in the housing )
- VOC level ( volatile organic compound ) ( sensor in the housing )
- Calculated values absolute humidity, dew point temperature and energy content ( enthalpy )
- Additional floor, ceiling or component temperature ( Terminal for external PT1000 )
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature, humidity and VOC level
- Fan control by humidity, VOC limits and external inputs
- Detecting of dew point temperature and alarm / regulation at risk of condensation
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller

Two binary inputs / outputs ( floating )

- Light control as switch / button with short, long, double and both function
- Dimmer
- Blind and shutter control
- Programmable Encoder
- Temperature adjustment
- The binary inputs can be configured as outputs ( LED / Beeper )

The current state of the temperature controller can be indicated by LED’s

- Heating or cooling
- Slow pulsing if controller is active
- Pulse depth represents deviation between actual- and setpoint-temperature
- Display for comfort / standby / night mode configurable

Four logic blocks for the logical link between internal and external signals

- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events

Applications

- Detection and control of room temperature and humidity
- Detection of VOC level
- Decentralized control for steady KNX-valves or thermal actuators
- Decentralized ventilation control depending on humidity and air quality
- Detecting of component temperature and temperature control ( Terminal for external PT1000 ) to prevent condensation and structural damage
- Evaluation of external switches and push buttons for switching functions

Technical Details

Downloads

Application Description
Product Description
ETS File

Accessories

PT1000 Temperature Probes:
- Sleeve Probe PT1000
- Screw-In Probe PT1000
- Pipe Feed Probe PT1000
- Pendulum Room Probe PT1000 (90100050)
- Ceiling Mounted Probe PT1000 (90100012)
- Wall Mounted Probe PT1000 (in SK03 case)
- Outdoor / Damp Room Probe PT1000 (90100007)
- Feed / Surface Mounted Probe PT1000 (90100001)
- Pendulum Room Probe PT1000 (radiant heat)(90100051)
