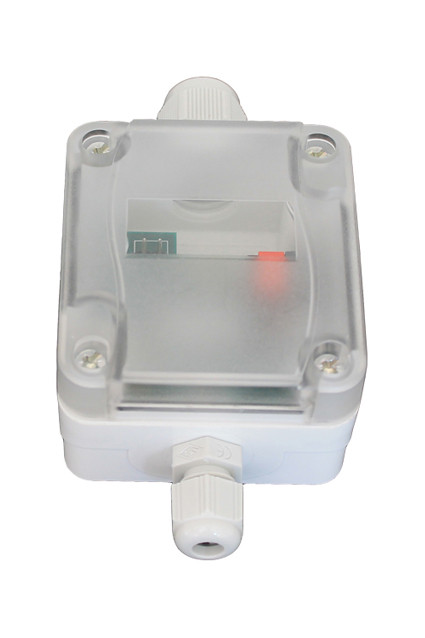

SK10L-TC-L Temperature Control with Brightness Sensor
Hover over image to zoom
Arcus
Product Description
The KNX-Sensor SK10L-TC-L is used for measuring and controlling indoor air temperature.
Temperature sensor sold separately (see accessories tab below).
Features
- Air temperature ( input for the sensor in the housing, sensor not included ) also weighted with external temperature
- Brightness detection ( sensor in the housing )
- Control functions for heating and cooling applications ( can be combined )
- Setpoint temperatures for Comfort, Standby, Economy and Protection, selectable via KNX HVAC objects
- Setpoint change via objects
- Storage of minimum- and maximum-temperature
- Heat- and frost-alarm
- Limits for temperature
- Fan control by external inputs
- Adaptation for setpoint and maximum temperatures
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary controller
Four logic blocks for the logical link between internal and external signals
- 10 associated logic inputs / outputs
- Heat- and cooling-request as additionally available signals
- Functions "AND, OR, NOT, XOR" for binary logic
- Functions "+ - *" for 8-bit values
- Function "=" for conditional forwarding of events
Applications
- Detection and control of room temperaturey
- Decentralized control for steady KNX-valves or thermal actuators
- Decentralized ventilation control
Technical Details
| Measurement: | Temperature Brightness |
| Control: | Integrated |
| Temperature Range: | -50 .. +400°C |
| Accuracy: | ± 0,3°C ( depending on the sensor used ) |
| Resolution: | ± 0,01°C |
| Brightness Range: | 3 .. 220.000 lux |
| Accuracy: | ± 20% |
| Operating Voltage: | KNX Bus Voltage 21 .. 32VDC |
| Power Consumption: | approx. 240mW ( at 24VDC ) |
| Environment Temperature KNX-Module: | Storage: -20 .. +85°C Operating: -20 .. +80°C |
| Environment Humidity KNX-Module: | 0 .. 95% r.H Non Condensing |
| Bus Coupler: | Integrated |
| Auxiliary Supply: | Not Required |
| Startup with the ETS Version 4 or higher: | HLK305 |
| Curcuit Points: | KNX 2-Pole Clamps ( red / black ) |
| Protection Class: | IP54/65 |
| Housing KNX-Module: | Plastic, Cover transparent |
| Dimensions Housing KNX-Module: | 72 x 64 x 45 mm |
| Article Number: | 30514100 |
Downloads
Application Description
Product Description
ETS File
Accessories
PT1000 Temperature Probes:
- Sleeve Probe PT1000
- Screw-In Probe PT1000
- Pipe Feed Probe PT1000
- Pendulum Room Probe PT1000 (90100050)
- Ceiling Mounted Probe PT1000 (90100012)
- Wall Mounted Probe PT1000 (in SK03 case)
- Outdoor / Damp Room Probe PT1000 (90100007)
- Feed / Surface Mounted Probe PT1000 (90100001)
- Pendulum Room Probe PT1000 (radiant heat)(90100051)
