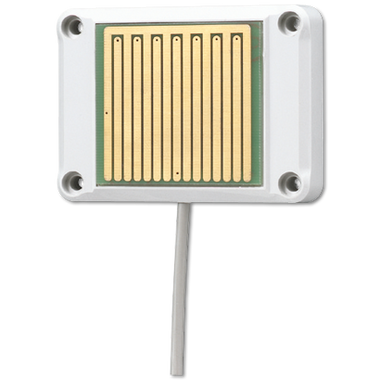

Rain sensor - WS 10 R
Hover over image to zoom
Jung
£298.21 (inc VAT) £248.51 (exc VAT)
SKU:
WS10R
Weight:
0.49 KGS
Availability:
5 - 10 days lead time
Product Description
Intended Use
- Sensor for measuring weather data
- Sensor signals are evaluated via additional electronics, e.g. analogue input (ref.-no. 2214 REG A)
- Detection of precipitation
- Installation in outdoor areas, e.g. on walls of buildings, using the supplied 110° mounting bracket
Characteristics
- Measurement of the electrical conductivity on the sensor surface
- Output by means of analogue output signal: 0 = dry, 10 V = rain
- Heating of the sensor surface with separate 24 V AC/DC power supply, ref.-no.: WSSV 10
Technical Details
| Power supply | |
| Rated voltage: | DC 15 ... 30 V SELV |
| Current consumption: | approx. 10 mA |
| Operating voltage | |
| Rated voltage: | AC/DC 24 V |
| Power consumption: | max. 4.5 W |
| Ambient temperature: | -30 ... +70 °C |
| Protection class: | III |
| Protection level: | IP 65 |
| Output signal | |
| Output voltage: | DC 0 / 10 V |
| Load: | min. 1 kΩ |
| Reaction time: | max. 4 min |
| Cable type: | LiYY 5 x 0.25 mm² |
| Cable length: | approx. 3 m |
| can be extended up to: | max. 100 m |
| Dimensions (W x H x D): | 58 x 83 x 17 mm |
