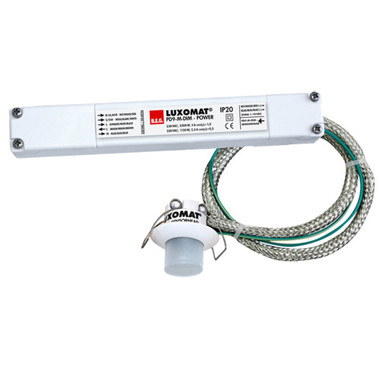

PD9-M-DIM-GH-FC - for large heights
Hover over image to zoom
B.E.G.
Product Description
- Mini occupancy detector for daylight-dependent lighting control, especially for large mounting heights
- 1-10 V interface for control of dimmable electronic ballast
- One channel for light dimming and switching
- Orientation light function
- Manual switching and dimming via push button possible
- Version as master device
- Extension of the detection area with slave devices possible
- Light regulation feasible up to 5 m mounting height
- Relay with tungsten pre-make contact, optimised for LED loads
- Easy operation with remote control (required)
- Power supply passes through the hole in the ceiling for the detector (34 mm Ø)
- Spring clips for quick and easy installation in suspended ceilings and light fittings
- Includes 45mm cover ring and blind
Typical application: Monitoring of industry halls and staircases
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz |
| Dimensions: | Sensor head: Ø 45 x 40 mm, Power supply: 165 x 24 x 24 mm |
| Power consumption: | approx. 0.5 W |
| Detection area: | vertical 360° |
| Range: | max. Ø 3.5 m across |
| Monitored area (tangential movement): | 10 m² / 6 m mounting height |
| Mounting height min./max./recommended: | 5 m / 10 m / 6 m |
| Degree / class of protection: | IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Cable length: | 45 cm, screened |
| Switching power: | |
| 2300 W, cos φ = 1 | |
| 1150 VA, cos φ = 0.5 | |
| 300 W LED | |
| max. inrush current Ip (20 ms) = 165 A | |
| max. inrush current Ip (200 µs) = 800 A | |
| Type of contact: | 1x µ-contact, NO contact with tungsten pre-make contact |
| DIM output: | 1-10 V DC, up to 50 ballasts |
| Follow-up time: | 1 min - 30 min |
| Brightness set value: | 10 - 2000 Lux Mixed light measuring |
Downloads
Accessories
- IR-Adapter for Smartphones - black - 92726
- IR-Pdim - 92200
- IR-PD-DIM-Mini - 92098
- RC-Arc extinction kit - white - 10880
- Mini-RC-Arc extinction kit - black - 10882
- Cover ring PD9 Ø 36 mm - anthracite - 92235
- Cover ring PD9 Ø 36 mm - silver - 92237
- Cover ring PD9 Ø 36 mm - white - 92238
- Cover ring PD9 Ø 45 mm - white - 92327
- Cover ring PD9 Ø 45 mm - silver - 92346
- Square design frame PD9 FC - pure white matt, similar to RAL 9010 - 92993
