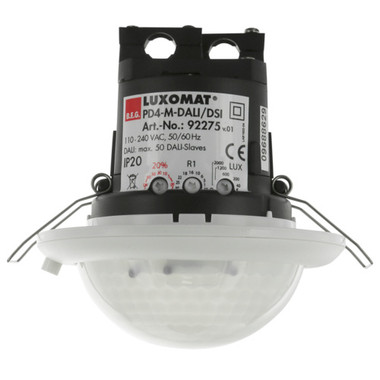

PD4-M-DALI/DSI

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
B.E.G.
$268.39 (inc VAT) $223.66 (exc VAT)
Weight:
0.20 KGS
Availability:
5 - 10 days lead time

 Product Description

- Occupancy detector with large detection area, daylight-dependent lighting control
- DALI / DSI interface for control of digital dimmable electronic ballasts as a group
- Switching between DALI and DSI programming possible with DIP switch and remote control
- Version as master device
- Extension of the detection area with slave devices possible
- Manual switching and dimming via push button possible
- Additional functions can be set up using the optional remote control.
- Orientation light function
- Factory settings 10 min and 500 lux
- Typical applications:
monitoring of large areas like underground garages, gyms, warehouses, loading ramps, halls

Technical Details

Voltage: 110 - 240 V AC 50 / 60 Hz
Dimensions: FC= Ø 97 x 103 mm
 SM= Ø 98 x 63 mm
Power consumption: approx. 1 W
Detection area: vertical 360°
Range: max. Ø 24 m across
 max. Ø 8 m towards
 max. Ø 6.4 m seated
Monitored area (tangential movement): 450 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 10 m / 2.5 m
Degree / class of protection: FC= IP20 / Class II
 SM= IP20 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: Polycarbonate, UV-resistant
  Channel 1 (lighting control)
DALI output: up to 50 DALI / DSI-EB
Follow-up time: 1 min - 30 min
Orientation light: 10 - 30 % / OFF / 5 min - 60 min / inf
Brightness set value: 10 - 2000 Lux
  Mixed light measuring



Downloads

Manual

Accessories

- IR-Adapter for Smartphones - black - 92726
- IR-PD-DALI - 92094
- IR-PD-DALI-LD - 92652
- IR-PD-DALI-E - 92122
- IR-PD-DALI-Mini - 92112
- Wire basket BSK (Ø 200 x 90 mm) - white - 92199
- SM socket IP54 PD2/PD4-SM - white - 92161
