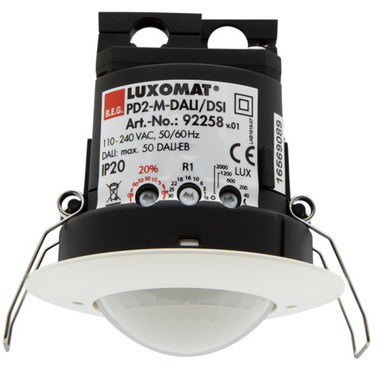

PD2-M-DALI/DSI
Hover over image to zoom
B.E.G.
Product Description
- Occupancy detector for daylight-dependent lighting control
- DALI / DSI interface for control of digital dimmable electronic ballasts as a group
- Manual switching and dimming via push button possible
- Switching between DALI and DSI programming possible with DIP switch and remote control
- Version as master device
- Extension of the detection area with slave devices possible
- Additional functions can be set up using the optional remote control.
- Orientation light function
- Factory settings 10 min and 500 lux
- Typical applications:
Offices, conference rooms, schools, nursery schools, hospitals
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz |
| Dimensions: | FC= Ø 80 x 85 mm SM= Ø 98 x 47 mm |
| Power consumption: | approx. 1 W |
| Detection area: | vertical 360° |
| Range: | max. Ø 10 m across max. Ø 6 m towards max. Ø 4 m seated |
| Monitored area (tangential movement): | 79 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 5 m / 2.5 m |
| Degree / class of protection: | FC= IP20 / Class II SM= IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Channel 1 (lighting control) | |
| DALI output: | up to 50 DALI / DSI-EB |
| Follow-up time: | 1 min - 30 min |
| Orientation light: | 10 - 30 % / OFF / 5 min - 60 min / ∞ |
| Brightness set value: | 10 - 2000 Lux |
| Mixed light measuring |
