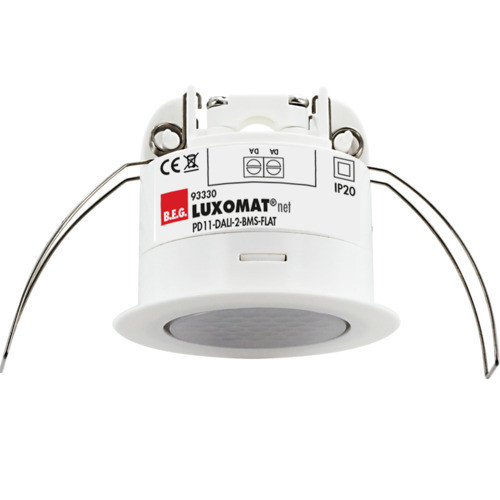

PD11-DALI-2-BMS-FLAT

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
B.E.G.
RRP: $187.29
$176.95 (inc VAT) $156.08 $147.46 (exc VAT) (You save $10.34)
SKU:
93330
Weight:
0.20 KGS
Availability:
5 - 10 days lead time

 Product Description

- Low profile DALI multisensor (visible height: 0,85mm)
- Powered via DALI bus
- DALI multimaster technology according to IEC 62386 part 103
- Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303
- Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304
- Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304.
- Spring clips for quick and easy installation in suspended ceilings
- Includes blinds and clamp ring for installation in lights
- With accessories for flush-mounting in ceiling and exposed concrete
- Application examples: offices, schools, nursery schools, hospitals, conference rooms.

Technical Details

Voltage: 9.5 - 22.5 V DC (typical 16V) via DALI Bus
Dimensions: Ø 52 x 48 mm
Settings: via DALI-Bus and application which supports DALI multisensors according to IEC62386. parts 101. 103. 303 and 304
Typ. power input: 4 mA
Detection area: vertical 360°
Range:

max. Ø 9 m across

max. Ø 6 m towards

max. Ø 3 m seated

Monitored area (tangential movement): 64 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP20 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: Polycarbonate, UV-resistant
Brightness set value: 5 - 1000 Lux



Downloads

Instruction
Brochure

Accessories

- In-wall mounting set 1 / PD11 - white - 92832
- In-wall mounting set 2 / PD11 - white - 92833
- Cover ring PD11 Ø 52 mm - black - 92537
- Cover ring PD11 Ø 100 mm - white - 92692
- Square design frame PD11 FC - white matt, similar to RAL 9010 - 92994
