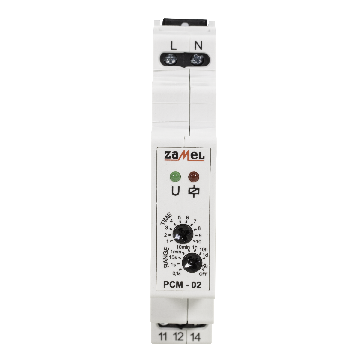

PCM-02 - Time Relay Switch OFF-Delay 230V AC
Hover over image to zoom
ZaMeL
Product Description
The one mode time relay PCM-02 has a delayed switch off function (aversive) in automation and control systems.
The relay is released by power supply voltage. It has a wide time adjustment range from 0,1 s to 10 days. Additional ON/OFF functions enable constant switch on, switch off of the output (load).
The system has the indicators of power supply voltage, relay mode, and time measure with the help of red LED diode.
Features
- Operating mode: switch off delay (input voltage release)
- Relay output - 1 change-over contact (NO/NC) contact max 16 A capacity
- Power/relay supply indicator and time measure - LED red
- Supply voltage control indicator - LED green
- Constant switch on, switch off function
- TH-35 DIN rail installation
- Time measure accuracy
- Wide time adjustment range
- TH 35 DIN rail installation
Technical details
| Mounting method | DIN Rail Mounted |
| Power supply terminals | L, N |
| Rated supply voltage | 230 V |
| Number of operating modes | 1 (switch off delay) |
| Time setting range t | 0,1 s÷10 days |
| Set time | 2x potentiometer (rotary + step) |
| Rated temperature | - 20/45 °C |
| Rated frequency | 50/60 Hz |
| Parameters of relay contacts | 1NO/NC -16 A / 250V AC1 4000VA |
| Protection degree | IP20 |
| Dimensions | 90 x 17.5 x 66 mm |
