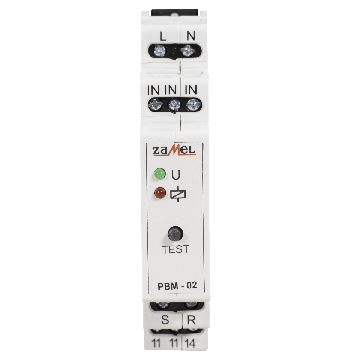

PBM-02 - Bistable Relay Set/Reset Input 230V AC
Hover over image to zoom
ZaMeL
Product Description
The bistable relay PBM-02 is used to control lighting or other devices by means of monomodular pushbuttons connected in a parallel way.
Pushing any button causes switching on or switching off the devices connected to output terminals. The controlling impulse can be L or N line signal. The Set and Rest control inputs allow central control of a relay group. Using the inner relay memory allows to remember its current mode in cases of power supply loss.
Features
- Bistable lighting control
- Input rated indicator LED green
- Relay mode indicator LED red
- Central control function
- Relay mode memory
- System releasing from the L or N cable
- cooperation with monostable pushbuttons equipped with illumination lamps
- TEST function
- double-wire controll installation
- voltage relay output - one NO (norma closed) contact max 16 A capacity
Technical details
| Mounting method | DIN Rail Mounted |
| Power supply terminals | L, N |
| Rated supply voltage | 230 V |
| Number of channels | 1 |
| Rated temperature | - 20/45 °C |
| Rated frequency | 50/60 Hz |
| Parameters of relay contacts | 1NO - 16 A / 250 V AC1 4000 VA |
| Protection degree | IP20 |
| Dimensions | 90 x 17.5 x 66 mm |
| Central control terminals | Set, Reset |
