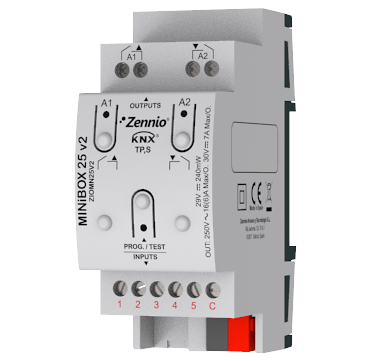

MINiBOX 25 v2 - ZIOMN25V2

Hover over image to zoom

  • MINiBOX 25 v2 - Multifunction actuator with 2 outputs (16 A) and 5 analog-digital inputs
Zennio
PLN707.22 (inc VAT) PLN589.35 (exc VAT)
SKU:
ZIOMN25V2
Weight:
0.10 KGS
Availability:
5 - 10 working days

 Product Description

Multifunction actuator for DIN-rail (2 units) with 2 outputs (16 A C-load) which offers multiple configurations as shutter channels and individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module. MINiBOX 25 v2 also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems. Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.

Features

- 2 different configurable outputs: shutter channel (up to 1) and individual outputs (up to 2)
- Outputs suitable for capacitive loads, maximum 140 μF.
- 5 analog/digital inputs.
- Manual output operation with push button and LED Status indicator.
- 10 logic functions.
- Output timing.
- 4 thermostats.
- Total data saving on KNX bus failure.
- Integrated KNX BCU.
- Dimensions 67 x 90 x 35 mm (2 DIN units).
- DIN rail mounting (EN 50022), with fixing clamp.
- Possibility of connecting different phases in adjacent outputs.
- Conformity with the CE directives (CE-mark on the right side).

Downloads

Datasheet
Manual
ETS File

Zennio Manuals

Thermostat
Temperature Probe
Binary Inputs
Motion Detector
Binary Outputs
Shutter Channels
Logical Functions

Accessories

- SQ-AmbienT (Ref. ZAC-SQAT-W/S/A)
- Temperature probes (Ref. ZAC-NTC68(S/E/F))
- Motion detector - P (Ref. ZN1IO-DETEC-P)
- Motion detector - X (Ref. ZN1IO-DETEC-X)
- Shutter Coupler 1CH (Ref. ZAC-SHUC1C)
- Shutter Coupler 2CH (Ref. ZAC-SHUC2C)
