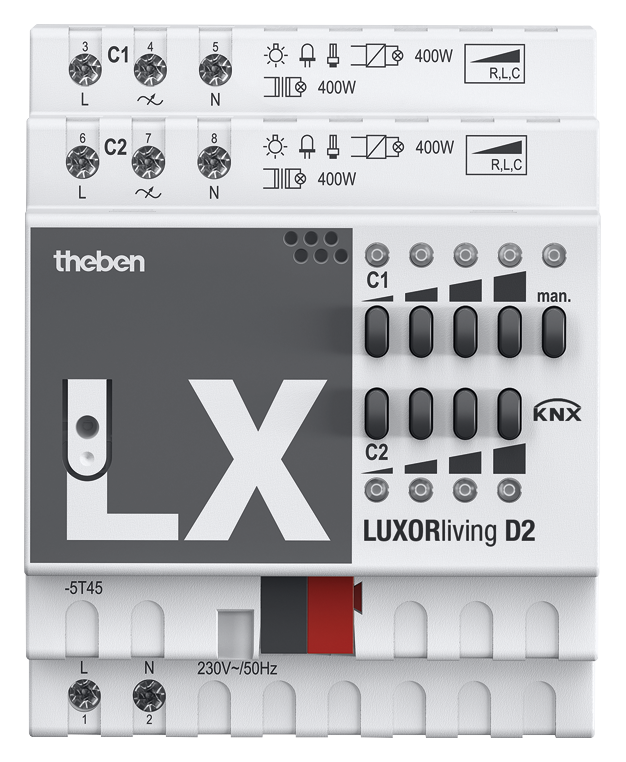

LUXORliving D2
Hover over image to zoom
Theben
£245.18 (inc VAT) £204.32 (exc VAT)
SKU:
4800470
Weight:
0.26 KGS
Availability:
5 - 10 Days Lead Time
Product Description
Function Description
- 2-way universal dimmer actuator LUXORliving
- Dimming output: 400 W per channel, dimming area 0-100%
- For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
- Also suitable for dimming of dimmable energy-saving lamps
- LED switching status display for each channel
- Manual operation on device
Technical Details
| Operating voltage KNX | ?10 mA |
| Operating voltage | 230 V AC |
| Stand-by consumption | ~0.9 W |
| Width | 4 modules |
| Installation type | DIN rail |
| Number of channels | 2 |
| Lamp types | Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED |
| Incandescent/halogen lamp load | 400 W |
| LED lamp | Trailing edge (RC-mode): 400 W |
| Energy saving lamps | Trailing edge (RC-mode): 400 W |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 669 |
Downloads
Datasheet
Operating Instructions
Hand book
ETS File
Software - LUXORplay Windows
