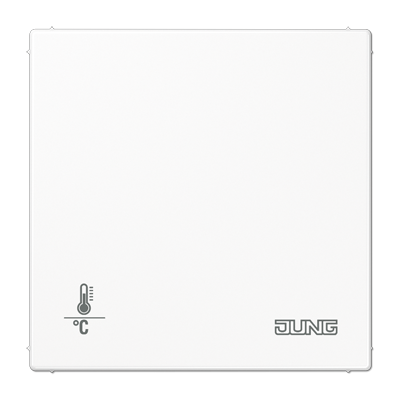

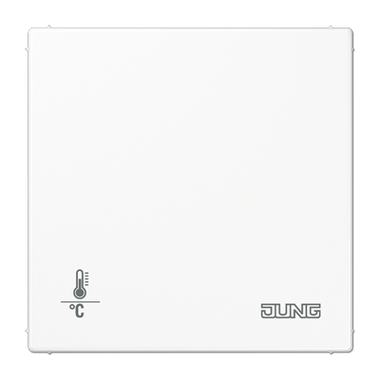

[LS]Room Autostat With Push-Button Interface

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Jung
£222.84 (inc VAT) £185.70 (exc VAT)
Weight:
0.13 KGS
Availability:
5 - 10 days lead time

 Product Description

- with integrated BCU
- with integrated push-button interface 4-gang
- without rotary knob for set point adjustment
- without any operational elements
- Only with the ETS 3.0d version or later versions the full functionality will be available.
- ETS product family: Heating, A/C, ventilation
- Product type: Regulator

Intended Use

- Single-room temperature control in KNX installations
- Integrated 4-gang binary input for universal use
- Installation in appliance box according to DIN 49073
- Recommended for installations in public buildings

Characteristics

- Measurement of room temperature and comparison with setpoint temperature
- Setpoint specification by selection of the operating mode
- Operating modes: Comfort, Standby, Night operation, Frost/heat protection
- Heating and cooling mode
- Heating and cooling with basic and additional step
- Operation solely via the bus
- Push-button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, push-buttons, LEDs, etc.
- Function of the inputs: switching, dimming, shutter control, light scene extension, brightness or temperature value transmitter
- Option: External temperature sensor (accessory ref.-no.: FF 7.8) connectable to input 4

Technical Details

Rated voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: max. 7.5 mA
Connection, KNX: terminal
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Output current: 0.8 mA
Inputs and outputs
Cable type: J-Y(St)Y 2 x 2 x 0.8 mm
Cable length: max. 5 m
Temperature sensor cable length: max. 50 m
Use deep wall box for cables with 1.5 mm²



Downloads

Operating Instruction
ETS File
