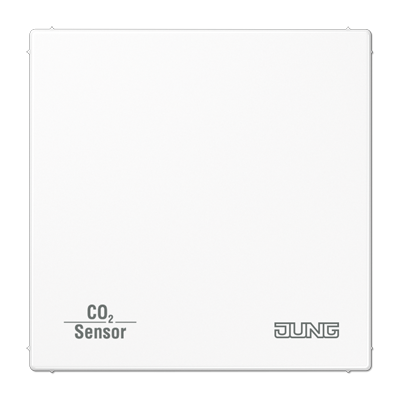

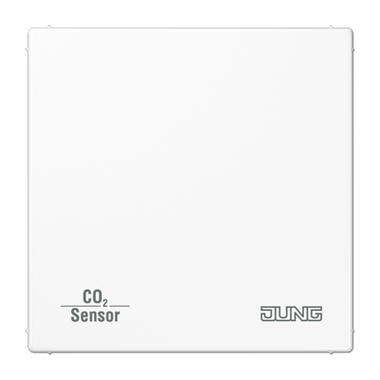

[LS]CO2 Multi-Sensor

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Jung
£291.14 (inc VAT) £242.62 (exc VAT)
Weight:
0.20 KGS
Availability:
5 - 10 days lead time

 Product Description

- with integrated BCU
- with humidity sensor and room temperature controller
- with integrated push-button interface 2-gang

Intended Use

- Measurement of CO2 concentration, relative air humidity and air temperature
- Output of the measured values as telegram to the bus, e.g. for controlling fans or window drives via KNX telegrams
- Single-room temperature control in KNX installations
- Installation in flush box according to DIN 49073

Characteristics

- Limit value monitoring for CO2 concentration (max. 4 threshold values) and air humidity (max. 2 threshold values)
- Dew point alarm e.g. for cooling blankets and conservatories, to avoid mould formation
- Two binary inputs for connection of floating contacts e.g. buttons, switches, window contacts
- Logic gates for simple gating functions

Technical Details

Rated voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: typical 12.5 mA
  max. 25 mA (4 s/15 s as a cycle)
Connection, KNX: terminal
Protection class: III
Ambient temperature: -5 ... +45 °C
Binary inputs
Cable length: max. 5 m
Cable type: J-Y(St)Y 2 x 2 x 0.8 mm
CO2 sensor
Measuring range: 0 ... 2000 ppm
Humidity sensor
Measuring range: 10 ... 95 % relative humidity (r. h.)
Temperature sensor
Measuring range: -5 ... +45 °C



Downloads

Operating Instruction
Manual
ETS File
