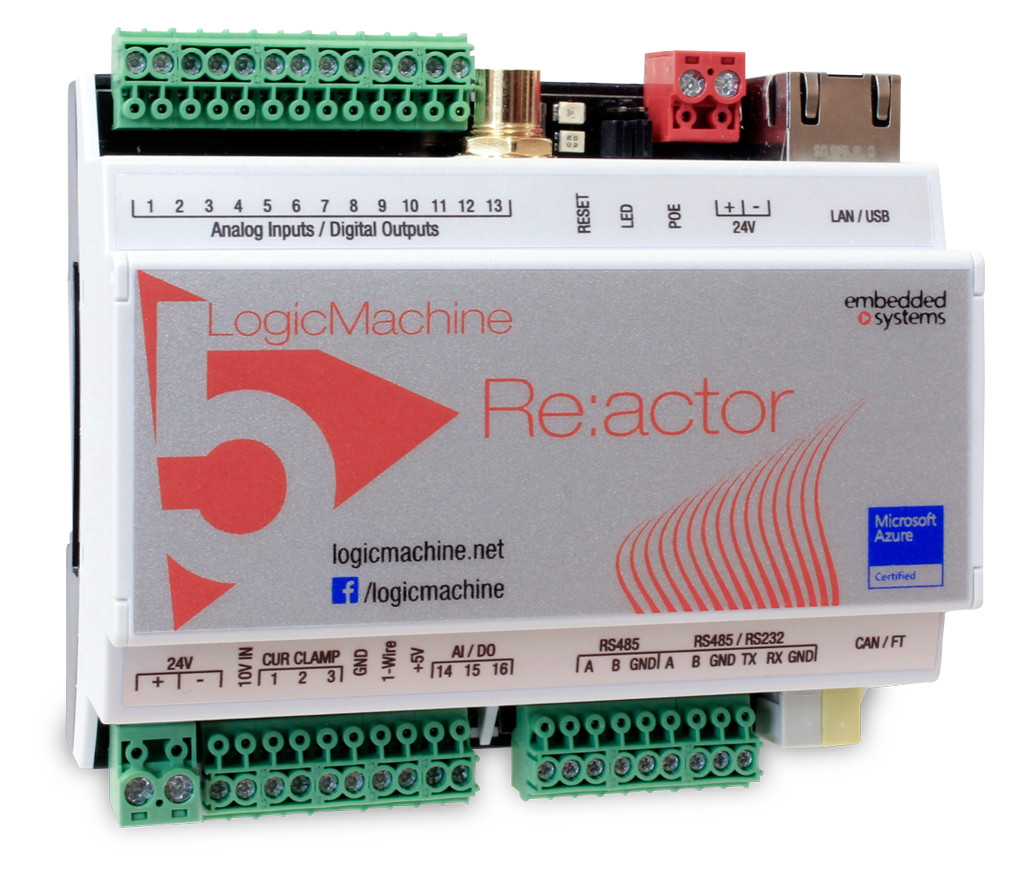

LM5Cp2-GSM - LogicMachine5 Reactor GSM Power CANx

Hover over image to zoom

  • Image 1
  • Image 2
Embedded Systems
On Request
0.30 KGS
5 - 10 Days Lead Time

 Product Description

LogicMachine5 Reactor GSM is all-in-one controller uniting in one device GSM/3G internet access functionality, cross-standard gateway, cloud service integration, complex network logic engine, easy-to create visualization platform, IP Router, I/Os and much more.

I/O specification:

- 1 x RS485
- 1 x RS485/RS-232 (switchable in software)
- 1 x USB2.0
- 1 x 10/100 Ethernet with passive PoE support
- 1 x CAN FT
- 16 x Programmable Analog inputs or Digital outputs
- 1 x 0-10V analog input
- 3 x analog inputs for split core current sensors. In upcoming batches will be replaced by regular 0-30V inputs (there are 0-5V current measurement sensors on the market which are more precise)
- 1 x 1-Wire

GSM/3G modem specification:

- Frequencies: 900/2100MHz @UMTS; 900/1800MHz @GSM
- Worldwide UMTS/HSPA and GSM/GPRS/EDGE coverage
- Maximum data rate: 7.2Mbps downlink; 5.76Mbps uplink


- 20 I/O ports
- 3G modem built-in for internet access and for SMS sending/receiving
- Built-in CAN FT (for canX extension modules, see more here: labs.canx.info and canx.info)
- Power-over-Ethernet powering
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of CAN, KNX, ModBus RTU/TCP, BACnet IP, 1-Wire, DMX, M-Bus and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 6 DIN units
- Remote KNX bus control and KNX device reprogramming
- Object logging with trends support and data exporting to external servers

LogicMachine5 Comparison Table (PDF)

Online Presentation of Core Functionality (Link)

Technical Details

Power supply:

2 x 24V DC on terminal connectors (1 for LM powering, 1 for external relay powering) or 24V DC Passive Power-over-Ethernet

Power consummation: 1.3W

- 1x GSM module with Antenna
- 1x Push-push micro-SIM connector
- 1x 10BaseT/100BaseTX
- 1x RS-485
- 1x RS-485/RS-232 (switchable in software – full-duplex=RS232, half-duplex=RS485)
- 1x USB2.0
- 16x Analog input/Digital output
- 1x Analog input 0-10V
- 3x Analog inputs for current measurement clamps (sensor specification)
- 1x 1-Wire
- 1x CAN FT (protocol features)

GSM modem:

Module type: Quectel UG95
Frequencies: 900/2100MHz @UMTS | 900/1800MHz @GSM
Worldwide UMTS/HSPA and GSM/GPRS/EDGE coverage
Maximum data rate: 7.2Mbps downlink / 5.76Mbps uplink


CAN bus: Bus Connection Terminal, 0.8mm2
Power supply: Screw, 5 mm2
Serial: Screw, 3.5 mm2
I/O: Screw, 3.5 mm
1-wire Screw, 3.5 mm2

Operating elements: CPU Load LED, Activity LED
Enclosure: Polyamide
Color: Gray
Dimensions: 61(W)x90(H)x108(L) mm
Usage temperature: 0C ... +45C
Storage temperature: -15C ... +55C
Weight: 150g
Warranty: 2 years
Relative Humidity: 10...95 % without condensation




Hotel solution based on LogicMachine

Hotel solution based on LogicMachine
Examples for hotel solution based on LogicMachine devices

Visualization Examples


LogicMachine DEMO

Login: admin

Password: admin


Visualization DEMO

Visualization Examples

 lm-visu1-290x217.jpg  lm-visu2-290x217.jpg  lm-visu3-290x217.jpg
