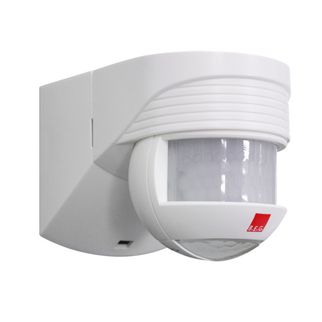

LC-Click-N 200°
Hover over image to zoom
B.E.G.
RRP:
PLN370.18
PLN349.84 (inc VAT) PLN308.49 PLN291.52 (exc VAT)
(You save PLN20.34)
SKU:
93042
Weight:
0.30 KGS
Availability:
5 - 10 Days Lead Time
Product Description
- Motion detector with 200° detection area and 180° anti-creep zone
- Can be mounted on standard flush-mount boxes
- Adjustable ball head
- Detection area can be restricted with blinds
- Simple mounting thanks to plug base
- Zero crossing switching
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz |
| Dimensions: | 103 x 78 x 80 mm |
| Power consumption: | approx. 0.4 W |
| Detection area: | horizontal 200° |
| Range: | max. 12 m across max. 4 m towards max. 2 m anti-creep protection |
| Monitored area (tangential movement): | 209 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 3 m / 2.5 m |
| Degree / class of protection: | IP54 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Channel 1 (lighting control) | |
| Switching power: | 2000 W, cos φ = 1 |
| 1000 VA, cos φ = 0.5 | |
| 300 W LED | |
| Type of contact: | µ-contact, 1 x NO contact |
| Follow-up time: | 4 sec - 20 min |
| Switch-on threshold: | 2 - 2000 Lux |
Downloads
Accessories
- Wire basket BSK (Ø 164 x 143 mm) - 92467
- RC-Arc extinction kit - 10880
- Mini-RC-Arc extinction kit - 10882
