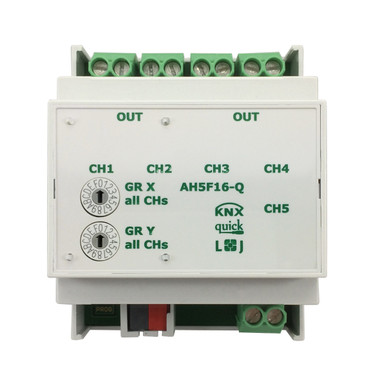

KNX quick Switching Actuator 16A C Load 140μF 5-Channels - AH5F16-Q
Hover over image to zoom
Lingg & Janke
Product Description
The quick-series of switching actuators are suited for high loads. The maximum load for each channel is 16A at 250V AC. Each channel may be used with a separate phase.
Programming the devices is usually done with the rotary-encoder switches. Whenever needed, programming via the ETS is possible, like any other standard KNX device.
- 5 channels for 5 independent load circuits
- switching capacity per channel: 16A 250VAC, suitable for C load up to 140μF
- programmable via ETS with coding switches set to 0
Technical Details
| Max. Group Addresses: | 96 |
| Power Supply: | 24V DC via KNX |
| Auxillary Power Supply: | Not Necessary |
| Protection Class: | IP 20 |
| Dimensions: | 71 x 90 x 60 (4 RU) |
| Installation: | 35mm DIN rail |
| Mechanical Life-cycle: | 106 Switching Operations |
| Operating Temperature: | -5 ... +45°C |
| Maximum Power per Contact: The total load must not cause overheating of the device! | 16A (ohmic ) / 250V 50..60Hz |
