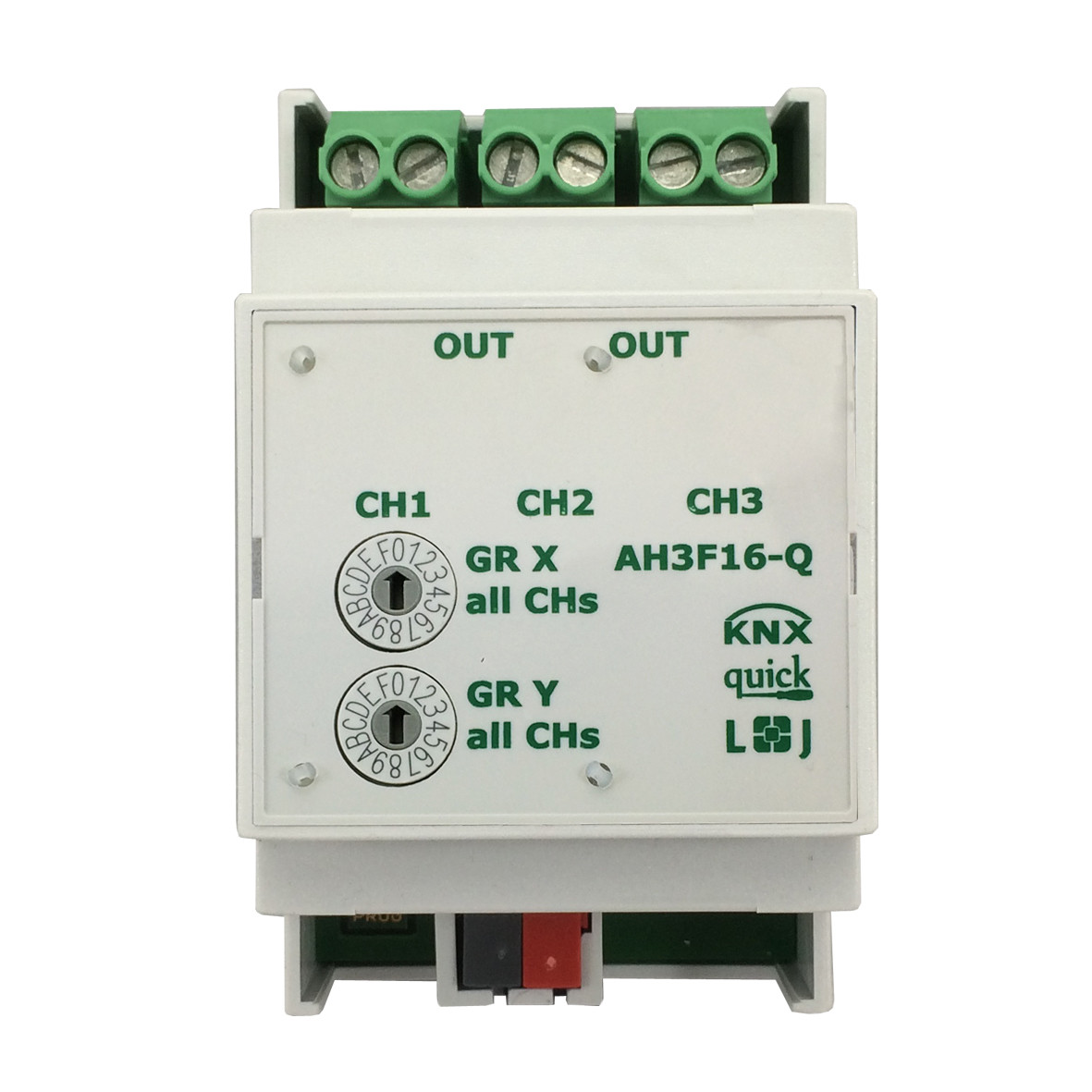

KNX Quick Switching Actuator 16A C Load 140μF 3-Channels - AH3F16-Q

Hover over image to zoom

  • Image 1
Lingg & Janke
RRP: $151.29
$137.55 (inc VAT) $126.08 $114.63 (exc VAT) (You save $13.75)
SKU:
Q79236
Weight:
0.30 KGS
Availability:
5 - 10 days lead time

 Product Description

The quick-series of switching actuators are suited for high loads. The maximum load for each channel is 16A at 250V AC. Each channel may be used with a separate phase.

Programming the devices is usually done with the rotary-encoder switches. Whenever needed, programming via the ETS is possible, like any other standard KNX device.

- 3 channels for 3 independent load circuits

- switching capacity per channel: 16A 250VAC, suitable for C load up to 140μF

- programmable via ETS with coding switches set to 0

Technical Details

Max. Group Addresses:

96

Power Supply:

24V DC via KNX

Auxillary Power Supply:

Not Necessary

Protection Class:

IP 20

Dimensions:

53 x 90 x 60 (3 RU)

Installation:

35mm DIN rail

Mechanical Life-cycle:

106 Switching Operations

Operating Temperature:

-5 ... +45°C

Maximum Power per Contact:

The total load must not cause overheating of the device!

16A (ohmic ) / 250V 50..60Hz



Downloads

KNX quick at a glance
Datasheet
ETS File
