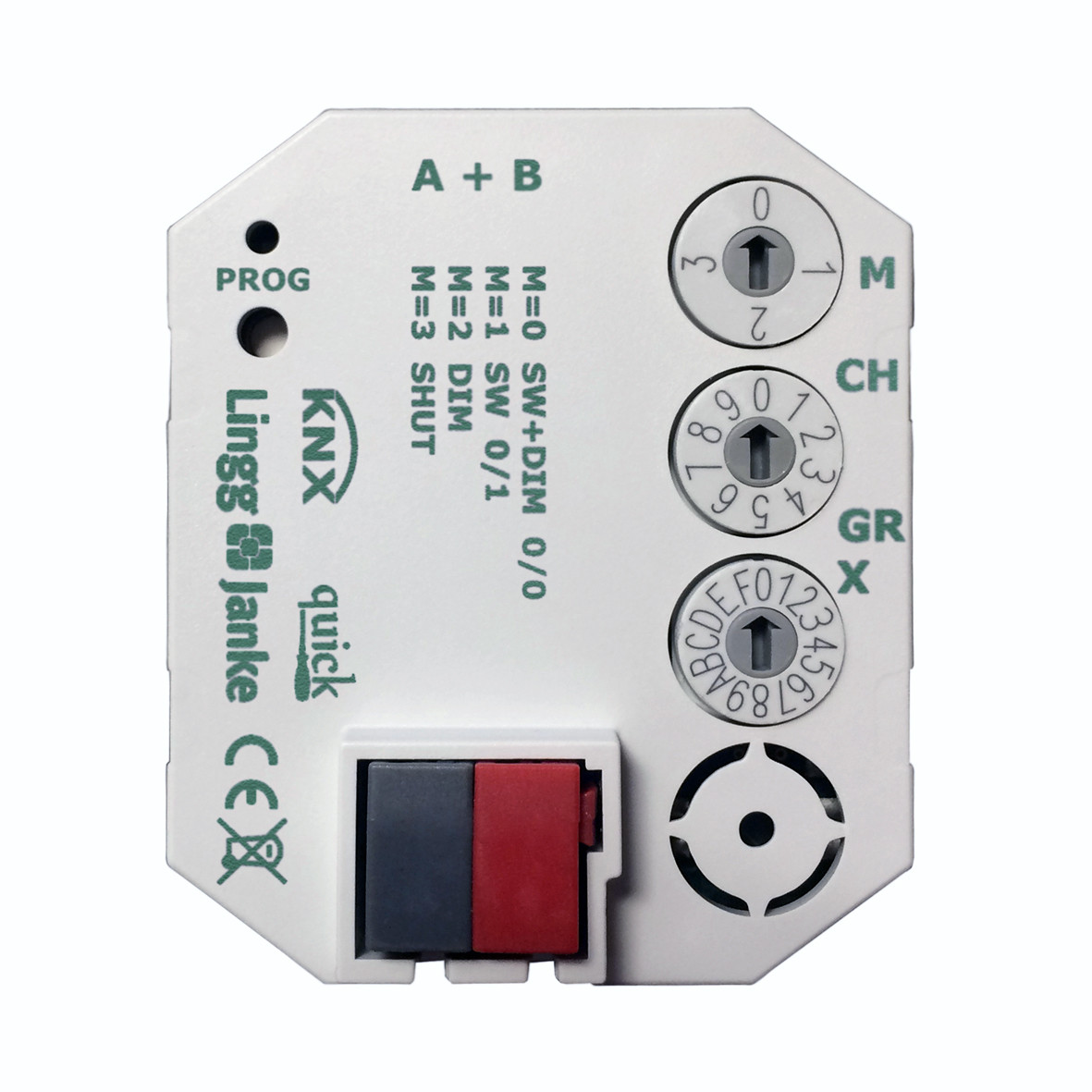

KNX Quick Push Button Interfaces 2/4/8-Fold

Hover over image to zoom

  • Image 1
Lingg & Janke
$57.34 (inc VAT) $47.79 (exc VAT)
Weight:
0.10 KGS
Availability:
5 - 10 days lead time

 Product Description

The quick-series push button interfaces are suited for 2/4 inputs with rocker function ( 1 / 2 rocker units ). Furthermore the push button interfaces TS2FL and TS4FL provides 2/4 LED outputs. Via the system connectors on the backside it is possible to plug several switching modules directly. No expensive wiring is needed..

Programming the devices is usually done with the rotary coding switches. Whenever needed, programming via the ETS is possible, like any other standard KNX device.

Technical Details

Max. Group Addresses:

80

Input:

2x/4x potential free (max. cable length 5m)

LED output:

2x/4x 5V / over all max. 5mA

Protection Class:

IP 20

Dimensions:

43 x 51 x 20mm

Installation:

built in box

Operating Temperature:

-5 ... +45°C



Downloads

KNX quick at a glance
Datasheet
ETS File (2-Fold / 4-Fold)
ETS File (8-Fold)
