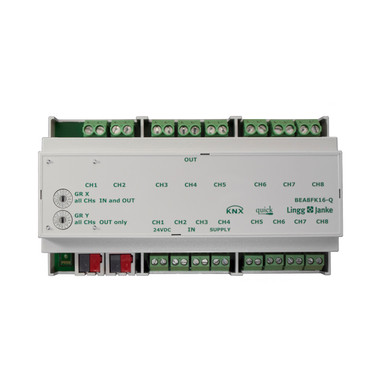

KNX Quick Binary Input/Binary Output 8-Fold, for dry contacts - BEA8FK16-Q
Hover over image to zoom
Lingg & Janke
Product Description
The quick-series of switching actuators with binary inputs are suited for high loads, including capacitive loads with high inrush currents (cload) . The maximum load for each channel is 16A at 250V AC. Each channel may be used with a separate phase.
Programming the devices is usually done with the rotary-encoder switches. Whenever needed, programming via the ETS is possible, like any other standard KNX device.
- inputs for dry contacts
- max. cable length 100m
- switching capacity per channel: 16A 250VAC, suitable for C load up to 200μF
- programmable via ETS with coding switches set to 0
Technical Details
| Max. Group Addresses: | 80 |
| Power Supply: | 24V DC via KNX |
| Auxillary Power Supply: | Not Necessary |
| Protection Class: | IP 20 |
| Dimensions: | 159 x 90 x 60 (9 RU) |
| Installation: | 35mm DIN rail |
| Mechanical Life-cycle: | 106 Switching Operations |
| Operating Temperature: | -5 ... +45°C |
| Rated Load per Contact: | 16A / 250V 50..60Hz |
| Maximum Power per Contact: | Incandescent lamp load 3680W |
| Fluorescent lamp load: | |
| - compensated 3680 W | |
| - uncomp. ( C max 200uF ) 2500 W | |
| Low volt. halogen with transf. 2000W | |
| Inputs: | Potential free (BEA4FK16-Q / BEA8FK16-Q) |
| 230V AC (BEA4F230-Q / BEA8F230-Q) | |
| 24V AC/DC (BEA4F24-Q / BEA8F24-Q) |
