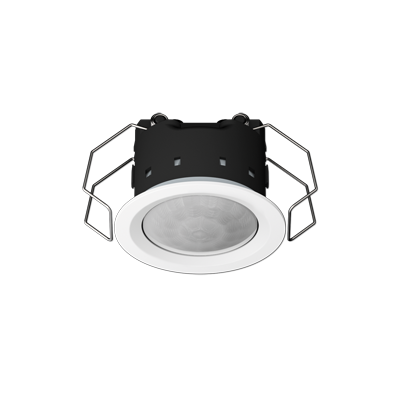

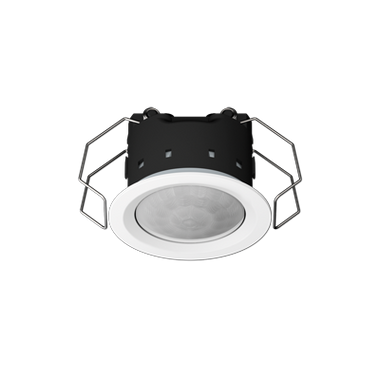

KNX Presence Detector Mini Universal

Hover over image to zoom

  • Image 1
Jung
£146.21 (inc VAT) £121.84 (exc VAT)
SKU:
3361-1MWW
Weight:
0.10 KGS
Availability:
5 - 10 days lead time

 Product Description

with integrated BCU
ETS product family: Physical sensors
Product type: Movement

Intended Use

- Requirement-oriented control of lighting, room thermostats and other electrical loads in interior rooms
- Clamp mounting in suspended ceilings
- Ceiling installation on fixed ceilings in appliance box according to DIN 49073 with flush mounting set (ref.-no.: PMM-UP-SET-WW)
- Surface-mounted ceiling installation with surface mounting set (ref.-no.: PMM-AP-SET-WW)

Characteristics

- Integrated bus coupling unit
- 3 PIR sensors
- Detection field 360°
- Integrated brightness sensor
- Deployed as presence detector, motion detector, or for alert operation
- Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Adjuster for manual adjustment of sensitivity
- Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode

Additional Characteristics of "Universal" Version

- Manual operation with IR remote control possible (ref.-no.: KNX PM FB IR)
- 5 function blocks for motion detection each with 2 outputs
- Function blocks switchable, e.g. for day/night operation
- PIR sensors can be evaluated separately
- Brightness sensor function with 3 limiting values
- Light control with max. 3 channels, setpoint shift in operation, separate configuration of dimming-up, control and dimming-down phase
- Light control can be combined with presence detector function

Presence Detector Function:

- Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded

Motion Detector Function:

- Motion detection for passageways in buildings
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded
After reacting and switching on, the motion detection works independently of the brightness.

Signalling Mode:

- Brightness-independent detection of motions in the detection field
- Switch on: After detection of an adjustable number of motions within the set monitoring period
- Switch off: No persons in the detection field and shut-off delay elapsed

Technical Details

Rated voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: max. 10 mA
Connection bus: terminal
Protection class: III
Ambient temperature: -25 ... +55 °C
Storage/transport temperature: -25 ... +70 °C
Relative humidity: 10 ... 100 % (no condensation)
Protection level: IP 44
Ceiling cut-out (Ø x D): 44 x 35 mm
Dimensions (Ø x H): 53.5 x 38 mm (with design ring)
Max. thickness of the suspended ceiling: approx. 25 mm
Installation depth: min. 35 mm
Distance between concrete ceiling and suspended ceiling: min. 20 mm
Design ring Ø inside: 35.6 mm
Design ring Ø outside: 53.5 mm
Profile height design ring: 1.8 mm
Profile height lens: 5.5 mm
Motion detection
Detection angle: 360°
Range: Ø approx. 12 m (mounting height 3 m)
Brightness sensor
Measuring range: 10 ... 2.000 lx
Accuracy (? 80 lx): ± 10 lx
Accuracy (> 80 lx): ± 5 %
