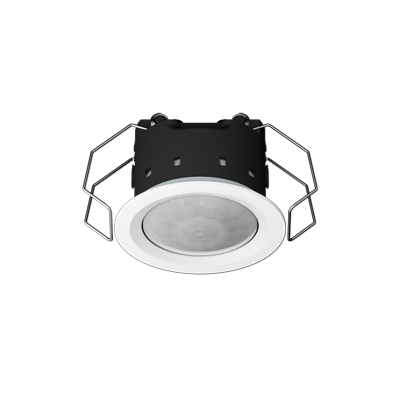

KNX Presence Detector Mini Standard
Hover over image to zoom
Jung
Product Description
with integrated BCU
ETS product family: Physical sensors
Product type: Movement
Intended Use
- Requirement-oriented control of lighting, room thermostats and other electrical loads in interior rooms
- Clamp mounting in suspended ceilings
- Ceiling installation on fixed ceilings in appliance box according to DIN 49073 with flush mounting set (ref.-no.: PMM-UP-SET-WW)
- Surface-mounted ceiling installation with surface mounting set (ref.-no.: PMM-AP-SET-WW)
Characteristics
- Integrated bus coupling unit
- 3 PIR sensors
- Detection field 360°
- Integrated brightness sensor
- Deployed as presence detector, motion detector, or for alert operation
- Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Adjuster for manual adjustment of sensitivity
- Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
Presence Detector Function:
- Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded
Motion Detector Function:
- Motion detection for passageways in buildings
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded
After reacting and switching on, the motion detection works independently of the brightness.
Signalling Mode:
- Brightness-independent detection of motions in the detection field
- Switch on: After detection of an adjustable number of motions within the set monitoring period
- Switch off: No persons in the detection field and shut-off delay elapsed
Technical Details
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Current consumption KNX: | max. 10 mA |
| Connection bus: | terminal |
| Protection class: | III |
| Ambient temperature: | -25 ... +55 °C |
| Storage/transport temperature: | -25 ... +70 °C |
| Relative humidity: | 10 ... 100 % (no condensation) |
| Protection level: | IP 44 |
| Ceiling cut-out (Ø x D): | 44 x 35 mm |
| Dimensions (Ø x H): | 53.5 x 38 mm (with design ring) |
| Max. thickness of the suspended ceiling: | approx. 25 mm |
| Installation depth: | min. 35 mm |
| Distance between concrete ceiling and suspended ceiling: | min. 20 mm |
| Design ring Ø inside: | 35.6 mm |
| Design ring Ø outside: | 53.5 mm |
| Profile height design ring: | 1.8 mm |
| Profile height lens: | 5.5 mm |
| Motion detection | |
| Detection angle: | 360° |
| Range: | Ø approx. 12 m (mounting height 3 m) |
| Brightness sensor | |
| Measuring range: | 10 ... 2.000 lx |
| Accuracy (? 80 lx): | ± 10 lx |
| Accuracy (> 80 lx): | ± 5 % |
