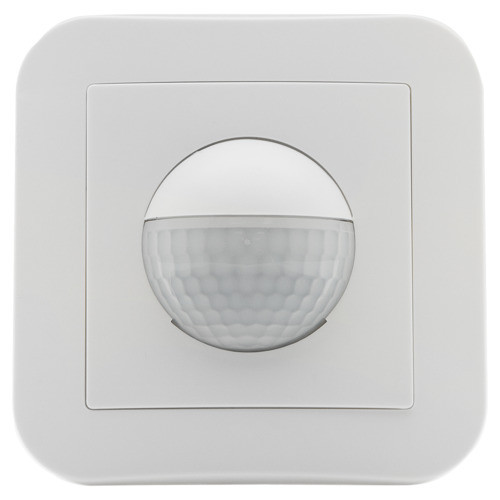

Indoor 180-SC - for stair light timer switches (EU)
Hover over image to zoom
B.E.G.
Product Description
- Slave device
- For extending the detection area of a Master device
- Compatible with all Master devices except: PD4-M-DS-FC, 11-48V units, PD9-M-SDB, PD4-M-DAA4G, Indoor 140-L, PD2N-M-1C-LED
- Available with covering (centre plate dimensions 60x60 mm) or without covering for use with covering (centre plate dimensions 50x50 mm) in 5 different colours
- In combination with centre plates usable with current frame systems of various manufacturers
- B.E.G. frames and centre plates for combination with other frame systems available
Application examples: monitoring of public lavatories, corridors, archive rooms, conference rooms
(white cover included)
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz Power supply via staircase switch |
| Dimensions: | 87 x 87 x 61 mm |
| Power consumption: | approx. 0.2 W |
| Detection area: | horizontal 180° |
| Range: | max. 10 m across max. 3 m towards |
| Monitored area (tangential movement): | 157 m² / 1.1 m mounting height |
| Mounting height min./max./recommended: | 1 m / 2.2 m / 1.1 m |
| Degree / class of protection: | IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Impulse duration: | 0.1 s, Suppression of light level threshold 1 min - 10 min |
| Switch-on threshold: | 10 - 2000 Lux |
Downloads
Accessories
- Frame IP20 Indoor 180 - pure white matt, similar to RAL 9010 - 92630
- Frame IP20 Indoor 180 - traffic white matt, similar to RAL 9016 - 92631
- Frame IP20 Indoor 180 - oyster white matt, similar to RAL 1013 - 92632
- Frame IP20 Indoor 180 - silver matt, similar to RAL 9006 - 92633
- Frame IP20 Indoor 180 - anthracite matt, similar to RAL 7021 - 92634
- Frame IP54 Indoor 180 - pure white matt, similar to RAL 9010 - 92139
- Surface mounting socket Indoor 180 - pure white - 92141
- Central plate Indoor 180 - traffic white matt, similar to RAL 9016 - 38947
