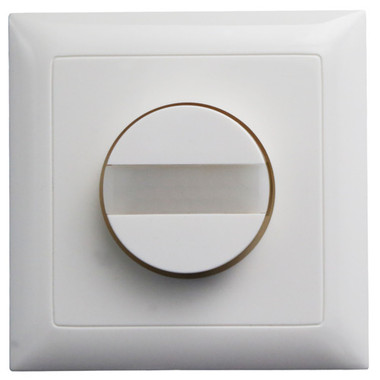

Indoor 140-L (EU)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
B.E.G.
RRP: £156.00
£147.42 (inc VAT) £130.00 £122.85 (exc VAT) (You save £8.58)
SKU:
94328
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

- Wall-mounted occupancy detector with integrated pushbutton
- One channel for switching light (selectively main light or orientation light)
- Integrated downlight with the function of an orientation or a night light
- Extension of the detection range possible by using up to 5 other Indoor 140-L
- Can be used as either Master device or Slave device
- Relay with tungsten pre-make contact, optimised for LED loads
- Available with covering (centre plate dimensions 60x60 mm) or without covering for use with covering (centre plate dimensions 50x50 mm) in 4 different colours
- Please order coverings for EU version separately; available in various colours
- In combination with centre plates usable with current frame systems of various manufacturers
- B.E.G. frames and centre plates for combination with other frame systems available

Application examples: hotel corridors, bedrooms, rest homes

(White cover included)

Technical Details

Voltage: 110 - 240 V AC 50 / 60 Hz
Dimensions: 88 x 88 x 30 mm
Power consumption: approx. 0.4 W / approx. 0.8 W with nightlight
Detection area:

horizontal 120°

Range:

max. 8 m across

max. 3 m towards

Monitored area (tangential movement): 67 m² / 1.1 m mounting height
Mounting height min./max./recommended: 1 m / 1.2 m / 1.1 m
Degree / class of protection: IP20 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: Polycarbonate, UV-resistant
Channel 1 (lighting control)
Switching power:
2000 W, cos φ = 1
1000 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (20 µs) = 800 A
Type of contact: 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec - 30 min
Orientation light: 0 - 100 % / OFF / 15 s - 30 min
Night light: 0 - 100 %
Switch-on threshold: 10 - 2000 Lux



Downloads

Datasheet
Manual
Flyer

Accessories

- RC-Arc extinction kit - 10880
- Mini-RC-Arc extinction kit - 10882
