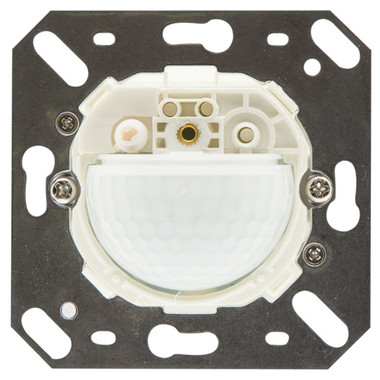

Indoor 180-KNX-DX
Hover over image to zoom
B.E.G.
Product Description
- KNX occupancy detector with integrated KNX bus coupler, especially for installation in walls
- 1x light output (for regulating or switching), 1x slave output, 3 x HVAC outputs (separately programmable)
- Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
- Two logic modules
- Individual adaption of the PIR sensor sensitivity
- Measuring of mixed light thanks to internal light sensor
- Various locking functions
- Status LEDs can be activated / deactivated
- Programming button (phys. address) can be operated via remote control
- Regulation/switching of three light groups via offset (external influence possible)
- Short presence, self-adjusting follow-up time, corridor function
- Recall of light scenes
- Temperature- and noise sensor
- HVAC mode (1=comfort, 2=stand-by, 3=economy, 4 = antifreeze/heat protection)
- 5 button remote control, programmable at choice (accessory)
- Occupancy simulation
- Detection area can be extended thanks to master-slave-mode
- Extensive optimization options for light measurement
- Measured light value is communicated to the bus
- IR remote control-capable via IR remote control (optionally)
- PIN code
- Manual influence via external KNX push buttons possible
- Function control (heartbeat, cyclical sending)
- Forced switch-off
- Intelligent central-off function
- Premonition of switch-off
- Behaviour upon bus voltage return definable at choice
- Variable safety pause after switching off the lights
- Settings ex ETS 4 for integration in KNX systems
- The product database for import into the ETS database can be downloaded from the B.E.G. homepage.
- Adaption of dimming curve
- Determination of the reflection factor, e.g. on a desk, with the optional BLE-IR-Adapter
- Burn-in function for fluorescent lamps selectable from 1h till 100h
- Soft-start
- Blinds
- For use with covering (interior cover dimensions 50 x 50 mm) in 5 different colours
- In combination with centre plates usable with current frame systems of various manufacturers
- B.E.G. frames and centre plates for combination with other frame systems available
- Please order cover frame separately, available in various colours
- Application examples: monitoring of public lavatories, corridors, archive rooms, conference rooms
For use with EU standard back boxes (link).
Technical Details
| Voltage: | via KNX BUS |
| Dimensions: | (covering not included) 70 x 70 x 61 mm |
| typ. power input: | 12 mA |
| Detection area: | horizontal 180° |
| Range: | max. 10 m across max. 3 m towards |
| Monitored area (tangential movement): | 157 m² / 1.1 m mounting height |
| Mounting height min./max./recommended: | 1 m / 2.2 m / 1.1 m |
| Degree / class of protection: | IP20 / Class III |
| Temperature measurement range: | -5 °C to +45 °C |
| Ambient temperature: | -25 °C to +55 °C |
| Housing: | Polycarbonate, UV-resistant |
| Number of light sensors: | 1 |
| Number of PIR sensors: | 1 |
| Orientation light: | 5 – 100 % / OFF / 1 min – 255 min |
| Night light: | 5 – 100 % |
| Brightness set value: | 5 – 2000 Lux |
Downloads
Application Description
ETS File
Accessories
- BLE-IR-Adapter - black - 93067
- IR-Adapter for Smartphones - black - 92726
- IR-PD-KNX - 92123
- IR-PD-KNX-Mini - 93398
- Frame IP20 Indoor 180 - pure white mat, similar to RAL 9010 - 92630
- Frame IP20 Indoor 180 - traffic white mat, similar to RAL 9016 - 92631
- Frame IP20 Indoor 180 - oyster white mat, similar to RAL 1013 - 92632
- Frame IP20 Indoor 180 - silver mat, similar to RAL 9006 - 92633
- Frame IP20 Indoor 180 - anthracite mat, similar to RAL 7021 - 92634
- Frame IP54 Indoor 180 - pure white mat, similar to RAL 9010 - 92139
- Surface mounting socket Indoor 180 - pure white - 92141
- Central plate Indoor 180 - traffic white mat, similar to RAL 9016 - 38947
