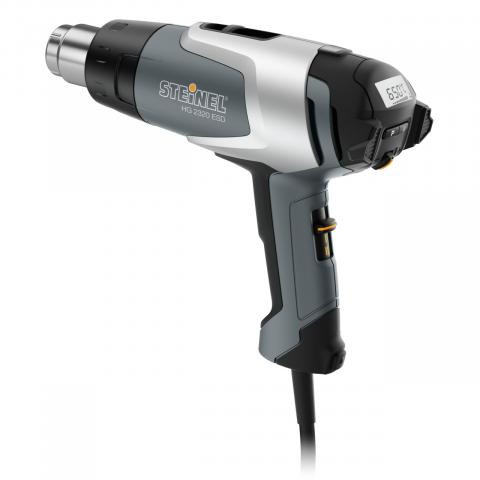

Hot Air Tool HG 2320 ESD
Hover over image to zoom
Steinel
Product Description
Precision digital control. Electronically controlled HG 2320 E hot air tool. 2300 W, digital temperature setting by joystick from 80 – 650 °C, temperature indicated in 10 °C steps on LCD display. Airflow regulation in 2 stages of 150 and 500 l/min. ESD-compliant, meets the requirements defined in IEC DIN EN 61340-5-1; part 5-1:2008 ff.
Absolute safety in electronics manufacturing
Fits perfectly in your hand and a real pleasure to use: the HG 2320 E comes with an impressive 2300 W of power and delivers hot air at between 80 – 650°C. Temperature is very easy to control via the joystick, giving you absolute precision. Together with the residual heat indicator, the LCD information display ensures additional certainty while the four individually selectable programmes provide extra flexibility. Coming with full ESD compliance, the HG 2320 ESD does not generate any static charges, making it an excellent choice for use in EPAs (ESD Protected Areas). If the cable should ever get damaged, it is very easy to change.
Technical Details
| Output | 2300 W |
| Temperature | 80 – 650 °C |
| Airflow rate | 150 – 500 l/min |
| Temperature setting | in 10°C steps by joystick |
| Temperature display | LCD display |
| Heating element | Ceramic heating element |
| Residual heat indicator | Yes |
| Function, hanger | Yes |
| Restart protection | No |
| Thermal cut-out | Yes |
| Thermostat | Yes |
| Dimensions (L x W x H) | 253 x 87 x 200 mm |
| Mains power supply | 220 – 230 V / 50 – 60 Hz |
| PU1, net weight | 1,044 kg |
| Manufacturer's Warranty | 1 year |
| Type | Gun-type tools |
| Output | > 2000 W |
| Target group | Car wrappers, Motor mechanics, Electricians |
