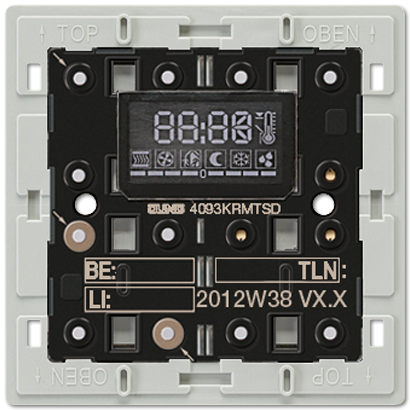

F40 Room Controller Display Compact Module

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Jung
£311.44 (inc VAT) £259.53 (exc VAT)
SKU:
4093KRMTSD
Weight:
0.10 KGS
Availability:
17-24 DAYS - ASK FOR THE STOCK
Maximum Purchase:
20 unit(s)

 Product Description

can be extended by means of a push-button extension module, ref.-no.: 409.. TSEM

Adapter frames are included in delivery: ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range. AS / A ranges without adapter frame.

Recommended mounting height: 1.5 m

Intended use

- Measurement and feedback control of the room temperature
- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
- Installation in flush box according to DIN 49073

Characteristics

All buttons can be assigned with functions for controller operation.

- Four red status LEDs
- One blue operation LED as an orientation light and to indicate the programming status
- Integrated bus coupling unit
- Connection for a push-button extension module, 1-4 gang
- Integrated temperature sensor
- Room temperature control with setpoint value specification
- Display of room or set temperature
- Display of outdoor temperature – with external sensor, e.g. weather station
- Display of time, in conjunction with KNX time encoder
- Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc.
- Push-button function or rocker function, vertical or horizontal
- Fan coil application with up to 8 fan speeds and auto function
- Transparent cover kit (included) for temporary site use without design covers

Downloads

Operating Instruction
Manual
ETS File

 Warranty Information

3 YEARS
