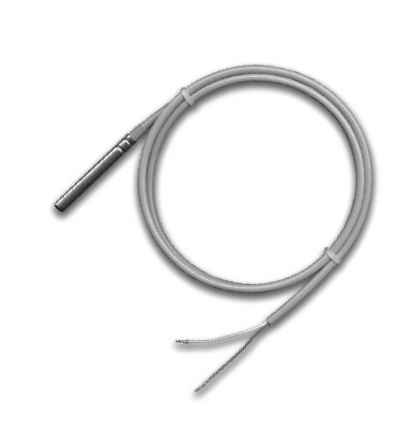

EGT 353-554 Cable Temperature Sensor
Hover over image to zoom
Product Description
Precise measurement of temperature for energy-efficient control of HVAC installations and monitoring energy consumption
Features
- Passive measuring element
- Particularly suitable for direct connection in installations with short distances between the controllers and the sensors
- Sensor with a wide range of applications and high type of protection (IP67) and fast time characteristic
- Used in air, used in liquid media with thermowells, or as a clamp-on temperature sensor with an accessory
- Large temperature measuring range
Resistance Values / Characteristics
| The tolerance listed below applies only to the corresponding measuring element. The accuracy of the sensor depends on the cable length and the measuring element used. | |||
| Measuring Element | Standards | Nominal value | Tolerance at 0 °C |
| Ni1000 | DIN 43760 | 1000 Ω at 0 °C | ±0.4 K |
| Pt100 | DIN EN 60751 | 100 Ω at 0 °C | ±0.3 K |
| Pt1000 | DIN EN 60751 | 1000 Ω at 0 °C | ±0.3 K |
| NTC 10k | - | 10 kΩ at 25 °C | ±0.3 K |
| NTC 22k | - | 22 kΩ at 25 °C | ±0.3 K |
Overview of Types
| Type | Measuring Element | Measuring Range | Sleeve Length LH | Total Length Lg | Material | Weight |
| EGT353F101 | NTC 10k | -35...100 °C | 50 mm | 1.5 m | PVC | 40 g |
| EGT353F103 | NTC 10k | -35...100 °C | 50 mm | 3 m | PVC | 85 g |
| EGT353F110 | NTC 10k | -35...100 °C | 50 mm | 10 m | PVC | 280 g |
| EGT353F120 | NTC 10k | -35...100 °C | 50 mm | 20 m | PVC | 550 g |
| EGT554F103 | NTC 22k | -35...100 °C | 50 mm | 3 m | PVC | 85 g |
| EGT354F102 | Ni1000 | -35...100 °C | 50 mm | 1 m | PVC | 30 g |
| EGT354F104 | Ni1000 | -35...100 °C | 50 mm | 3 m | PVC | 85 g |
| EGT354F111 | Ni1000 | -35...100 °C | 50 mm | 10 m | PVC | 280 g |
| EGT354F121 | Ni1000 | -35...100 °C | 50 mm | 20 m | PVC | 550 g |
| EGT355F902 | Ni1000 | -50...180 °C | 100 mm | 2 m | Silicone | 60 g |
| EGT355F903 | Ni1000 | -50...180 °C | 150 mm | 2 m | Silicone | 60 g |
| EGT356F102 | Ni1000 | -50...180 °C | 50 mm | 1 m | Silicone | 30 g |
| EGT356F104 | Ni1000 | -50...180 °C | 50 mm | 3 m | Silicone | 90 g |
| EGT356F111 | Ni1000 | -50...180 °C | 50 mm | 10 m | Silicone | 300 g |
| EGT356F304 | Ni200 | -50...180 °C | 50 mm | 3 m | Silicone | 90 g |
| EGT456F012 | Pt100 | -50...180 °C | 50 mm | 1 m | Silicone | 30 g |
| EGT456F102 | Pt1000 | -50...180 °C | 50 mm | 1 m | Silicone | 30 g |
