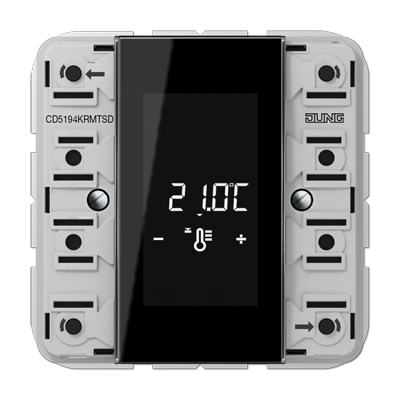

[CD]F50 Room Controller Display Compact Module 4-Gang

Hover over image to zoom

  • Image 1
Jung
£312.30 (inc VAT) £260.25 (exc VAT)
SKU:
CD5194KRMTSD
Weight:
0.09 KGS
Availability:
5 - 10 days lead time

 Product Description

for cover kit 4-gang, ref.-no.: CD 504 TSA ..
can be extended by means of a room controller
extension module, ref.-no.: CD 5178 TSEM
can be extended by means of a push-button extension module, ref.-no.: CD 509.. TSEM

Recommended mounting height: 1.5 m

Intended use

- Measurement and feedback control of the room temperature
- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
- Extension for room controller modules (.. 5192 KRM TS D, .. 5194 KRM TS D)
- Installation in flush box according to DIN 49073

Characteristics

Each button can be used for push-button sensor of contoller functions.
- Backlit LC display
- One or two functons per button
- To be completed with cover kit
- Eight status LEDs – red, green or blue
- Brightness of status LEDs and LCD adjustable
- Integrated bus coupling unit
- Connection of extension modules
- Integrated room temperature sensor
- External sensor (ref.-no.: FF 7.8) can be connected
- Room temperature control with setpoint value specification
- Two internal independent controllers for two independent areas – in connection with extension modules
- Display of room or set temperature (°C or °F)
- Display of outdoor temperature – with external sensor, e.g. weather station
- Display of time, in conjunction with KNX time encoder (in menu level)
- Push-button function or rocker function
- Inhibit function: blocking or change of function of the entire or single button functions
- Alarm function, optional with acknowledge by pressing any button
- Function symbols can be shown

Accessories:
external sensor ref.-no.: FF 7.8

Downloads

Operating Instruction
Manual
ETS File
