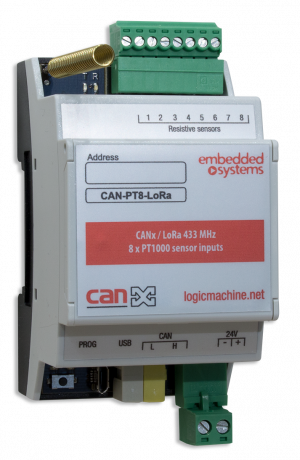

CANx / LoRa 433 MHz 8 x PT1000 Sensor Inputs
Hover over image to zoom
Embedded Systems
Price on request
SKU:
CAN-PT8-LoRa
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time
Product Description
This device is designed for heating applications. It is equipped with 8 input channels for connection of temperature sensors. The configuration and monitoring of the device is done through separate LogicMachine CANx application. The device is designed for DIN-rail mounting and requires 3 DIN-units.
Highlights
- 8 x PT1000 inputs
- 1 x CAN FT
- CANx configurator is freely available from LM app store
- Optional LoRa 433 Mhz transceiver with antenna (adjustable bandwidth / distance)
- Can be used with wired or wireless media, or as gateway between wireless-wired
Technical Details
| Power supply | 12-32V DC |
| Power consumption (at 24V) | 4 mA (all sensors connected), 0.2 mA (max current per channel), 19 mA (full load with LoRa) |
| DC overvoltage protection | 50 V |
| Wrong wiring polarity protection | Yes |
| Interfaces & Operating Elements | |
| PT1000 temperature sensor inputs | 8 |
| USB | 1 microUSB for upgrade firmware flashing |
| CAN FT | 1 |
| LED | 1 – CPU load, 1 - Error, 2 - RX/TX LoRa |
| Programming/reset button | 1 |
| Clamps & Enclosure | |
| CAN FT Terminal | 0.8mm2 |
| Inputs | 3.5 mm2 |
| Power supply | 5 mm2 |
| Color | Gray |
| Dimensions | 52(W)x100(H)x68(L) mm |
| Protection | IP20 according to EN 60529 |
| Usage temperature | -5C ... +55C |
| Storage temperature | -20C ... +70C |
| Net weight | 86 g |
| LoRa Specification | |
| Power on transmitter | 1.6-50 mW (software adjustable) |
| Frequency range | 433-434,750 MHz |
| Channel bandwidth | 125 / 250 / 500 kHz |
| Carrier frequency step | 125 kHz |
| Spreading factor | 7-12 |
